TOYOCONNECTOR TC2-B Coupling

Couplings for factory pipe lines (Toyox hose genuine couplings)



[Prevents Leaks and Disconnections]
Helps ensure stable production by preventing fluid leaks, hose disconnections, and other production-related problems.

[Lightweight and Compact]
Lighter and more compact than TC3-B couplings for easy installation even in narrow spaces.

[Easy to Install]
Hexagonal nut designed with dimensions for use with JIS-standard wrenches, eliminating the need for special tools and increasing work efficiency.

[Reduces Piping Work]
Uniform installation with no need for cumbersome clamp alignment, torque control, or retightening.

[Easy Insertion]
Easily insertable hose nozzle with the same diameter as the hose, ensuring easy installation for anyone.

[Energy-Saving]
Larger effective sectional area of the hose nozzle than barb fittings for reduced pressure loss and minimal power consumption.

[Reusable]
Reusable sleeves if used only for short periods during assembly testing and trial operations for improved cost reductions.
* If the hose and coupling need to be removed for assembly testing or trial operations, the hose and sleeves can be reused up to three times so long as they are used at room temperature for no more than 24 hours at a time.

Note: Because of the presence of threads, this is not appropriate for sanitary hoses (such as used for foods).
Use for foods may result in safety issues in the product.

Part Number Thread Specification Compatible Hoses
Inner Diameter(mm)
Dimensions (mm) Weight Packing Unit
L Φd1 HEX1 HEX2 g pc
TC2-B9-R3/8 R3/8 9 35.5 7.2 25 23 82 30
TC2-B12-R1/2 R1/2 12 44.5 10.0 29 27 127 30
TC2-B15-R1/2 R1/2 15 45.5 13.0 33 32 150 30
TC2-B19-R3/4 R3/4 19 50 17.0 36 35 212 20
TC2-B25-R1 R1 25 54.5 23.0 43 41 263 20



Nipple: Brass
Cap nut: Brass
Sleeve: Polyacetal

TOYOFUSSO SOFT-S HOSE

(For cosmetic and food)





Use Cosmetic, Oil foods. Alcoholic, Beverage, Fragrance etc.
Fluid Water (Industrial water) ,Food / Beverage (including fats and oils) ,Chemicals Minerals Oils, Animal and vegetable oils ,Powders, Air ,Pure water
Function
  • Pumping
  • Suction
  • Heat Resistant
  • Chemical
  • Oil resistant mineral oil
  • Oil resistant animal and vegetable oil
  • Low elution
  • Low odor
  • Transparency
  • Flexibility
Certifications Food Compliancy no. 196

FDA
RoHS2 Compliant

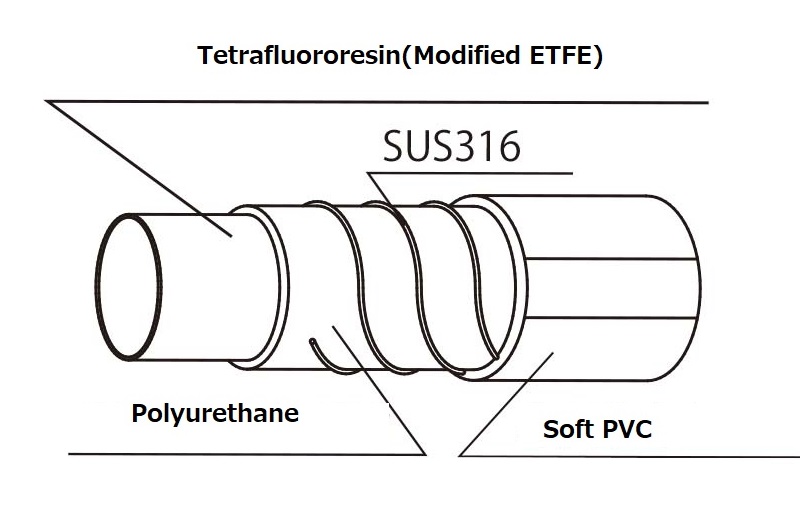

Method Primary Material: modified ETFE
Materials: SUS316
Diameter: 19mm~50mm
Temperature Range: -5℃ ~70℃







Standards Chart by Size: Temperature Range -5℃ ~ 70℃

Product Code Inner dia. x Outer dia.
(mm)
Use pressure

23℃
(MPa)

Use pressure
70℃
(MPa)
Standard weight
(kg/roll)
Standard length
(m)
Minimum bend radius
(mm)
FFYS-19-20 19×26 -0.10~0.4 -0.1~0.2 7.4 20 60
FFYS-25-20 25×33 -0.1~0.4 -0.1~0.2 11.3 20 85
FFYS-38-20 38×48 -0.1~0.3 -0.1~0.15 20.8 20 135
FFYS-50-10 50×62 -0.1~0.3 -0.1~0.15 16.1 10 180







Tokatsu Industry is a Japanese manufacturer based on the hose.

From food, medicine, cosmetics to chemistry, semiconductors, nuclear power, the Tokatsu Industry manufactures various hoses used in a wide range of industries.
The main products are PTFE hose, silicone hose, EPDM hose, NBR hose.







PTFE STRAITH HOSE

Hose Detail
R115 Widely used PTFE hose
R117 R115 hose with surface spring
R119 SUS Flexible hose (PTFE hose Inside)
R122 Antistatic treatment R115 hose
R127 R122 hose with surface spring(Antistatic)
R140 Flange type hose, whole wetted pars are PTFE
R155 High pressure type(Antistatic)
R160 Ultra-high pressure type(Antistatic)
R500 Ferrule type, whole wetted pars are PTFE

Seamless Joint





The seamless joint, so-called “buried expansion joint” or “asphaltic plug joint”,consists of asphaltic material as almost the same property as asphalt pavement around joint, and steel joint frame buried in the bottom of its asphaltic material. The seamless joint will be able to prevent noise and vibration, to keep flat surface at joint. As the result, comfortable surroundings of bridges will be provided by the
seamless joint.





-Features

1.High quality, heating type, pre-mixed material

2.Automatic temperature control.

3.Save time

4.Water stop performance

5.Salt Damage prevention

6.Easy to maintain

Please Check more detail form following:

SJ-Method Brochure





TOYOCONNECTOR TC3-B Coupling



Couplings for factory pipe lines (Toyox hose genuine couplings)

TOYOCONNECTOR is a hose manufacturer designed coupling exclusively for TOYOX hoses.
(Material: Brass/Cap nuts type/Couplings Specification: Male Thread)

It is a hose coupling that is useful in improving productivity, safety and energy saving properties by preventing problems such as insufficient flow, fluid leakage and hose disconnection between the hose and coupling, and improving the installation process of the hose to the coupling.

For better productivity, safety and energy saving properties, we recommend that you select hoses suitable for your specific application and conditions.





Connection Surface Connection Method Inner Diameter for Hose (mm) / Coupling Specification
Hose Side Cap Nut 9,12,15,19,25
Device Side Male Thread R1/4,R3/8,R1/2,R3/4,R1
Product no. TC3-B
Fluids Air Oils Water (Non-drinkable)
Primary Material Brass
Materials Detail Nipple: Brass
Cap nut: Brass
Rubber seal: NBR
Sleeve: Polyacetal
Functionality Easy to installEnergy savingPrevents leakage and disconnectionReusableStandardization of work
Certification RoHS2 (RoHS Revised) Certified



Coupling Design Chart

Part Number Thread Specification Dimensions (mm) Weight Packing Unit
L Φd1 HEX1 HEX2 g pc
TC3-B9-R1/4 R1/4 42.5 7.0 29 24 102 20
TC3-B9-R3/8 R3/8 43.5 7.0 29 24 108 20
TC3-B12-R3/8 R3/8 44.5 10.0 32 27 127 20
TC3-B12-R1/2 R1/2 48.0 10.0 32 27 141 20
TC3-B15-R3/8 R3/8 44.5 11.5 36 31 159 20
TC3-B15-R1/2 R1/2 48.0 13.0 36 31 167 20
TC3-B19-R1/2 R1/2 52.0 15.0 41 36 239 10
TC3-B19-R3/4 R3/4 53.5 17.0 41 36 241 10
TC3-B25-R3/4 R3/4 56.0 20.5 49 42 345 10
TC3-B25-R1 R1 59.0 22.5 49 42 357 10



List of Compatible Hoses

Compatible Hoses : 14 Hoses
Name
ECORON HOSE ECORON-S HOSE TOYOFOODS HOSE TOYOFOODS-S HOSE HYBRID TOYOFOODS HOSE TOYORING-F HOSE HYPER TOYORON HOSE TOYORON HOSE HYBRID TOYORON HOSE SUPER TOYORON HOSE TOYOSPRING HOSE TOYORING HOSE TOYOSIGNAL HOSE HYBRID TOYODROP HOSE
Material : Brass
Primary Material Polyolefin Polyolefin Vinyl Vinyl Vinyl Vinyl Vinyl Vinyl Vinyl Vinyl Vinyl Vinyl Vinyl Vinyl
Functionality
Chemical Resistant
Flexible
Low Elusion
Low Odor
No Waste Sorting Required
Oil Resistant (Animal and Vegetables)
Oil Resistant (Mineral)
Pressure
Break Proof
Chemical Resistant
Flexible
Low Elusion
Low Odor
Oil Resistant (Animal and Vegetables)
Oil Resistant (Mineral)
Pressure
Vacuum
Flexible
Heat Resistant
No Waste Sorting Required
Oil Resistant (Animal and Vegetables)
Oil Resistant (Mineral)
Pressure
Transparent
Break Proof
Flexible
Heat Resistant
Oil Resistant (Animal and Vegetables)
Oil Resistant (Mineral)
Pressure
Transparent
Vacuum
Break Proof
Flexible
Heat Resistant
No Waste Sorting Required
Oil Resistant (Animal and Vegetables)
Oil Resistant (Mineral)
Pressure
Transparent
Break Proof
Flexible
Heat Resistant
No Waste Sorting Required
Oil Resistant (Animal and Vegetables)
Oil Resistant (Mineral)
Pressure
Transparent
Vacuum
Flexible
Heat Resistant
No Waste Sorting Required
Oil Resistant (Animal and Vegetables)
Oil Resistant (Mineral)
Pressure
Transparent
Flexible
No Waste Sorting Required
Pressure
Transparent
Break Proof
Flexible
No Waste Sorting Required
Pressure
Transparent
Flexible
No Waste Sorting Required
Pressure
Transparent
Break Proof
Flexible
Pressure
Transparent
Vacuum
Break Proof
Flexible
No Waste Sorting Required
Pressure
Transparent
Vacuum
Flexible
High Pressure Resistant
No Waste Sorting Required
Pressure
Anti Condensation
Break Proof
Flexible
No Waste Sorting Required
Pressure
Product no. EC ECS TFB TFS HTF TGF HPT TR HTR ST TS TG TSG HTD
Certification RoHS2 Certified RoHS2 Certified RoHS2 Certified RoHS2 Certified RoHS2 Certified RoHS2 Certified RoHS2 Certified RoHS2 Certified RoHS2 Certified RoHS2 Certified RoHS2 Certified RoHS2 Certified RoHS2 Certified RoHS2 Certified
Product Code Compatible Hoses
Inner Diameter(mm)
Coupling Specification
TC3-B9-R3/8 9 R3/8
TC3-B9-R1/4 9 R1/4
TC3-B12-R1/2 12 R1/2
TC3-B12-R3/8 12 R3/8
TC3-B15-R1/2 15 R1/2
TC3-B15-R3/8 15 R3/8
TC3-B19-R3/4 19 R3/4
TC3-B19-R1/2 19 R1/2
TC3-B25-R1 25 R1
TC3-B25- 25 R3/4



TOYOSILICONE STEAM HOSE (For steam/high-temperature water)



The TOYOSILICONE STEAM Hose is a steam hose ideal for steam drainage and equipment steam washing in food processing plants and cosmetics plants. *It is not suited to food transport. Use hoses with one end open.

Half the weight of the conventional steam hose and flexible for easy piping, it greatly reduces the amount of work required. Prevents contamination from hose fragments, as the hose surface is less likely to crack even after long-term use. Low-odor with no smell of rubber, it reduces product odor transfer and discomfort due to odors, developed as a hose intended to improve workability and food safety.

The hose can be used for up to 8 hours of continuous steam washing (with one end open) per day, with an extremely long life of roughly 4.5 months (before replacement) with steam at 140°C (0.3MPa). Improve productivity through this lightweight, flexible, crack-resistant hose.

As well, it can also be used for high-temperature water at 100°C or higher, with dedicated couplings and hose assemblies available for greater safety and reduced maintenance.

Use Steam/high-temperature water (for steam drainage, equipment steam washing, heat-resistant high-temperature water piping)
Fluid Steam
Function
  • Cold Resistant
  • Flexible
  • Heat Resistant
  • Low Elusion
  • Low Odor
  • No Waste Sorting Required
  • Pressure
Certifications Food Compliancy no. 595
RoHS2 Compliant
Method Primary Material: Silicon
Materials: Polyester thread
Diameter: 9.5mm~25.4mm
Temperature Range: -30℃ ~140℃



Standards Chart by Size: Temperature Range -30℃ ~ 140℃

Product Code Inner dia. x Outer dia.
(mm)
Use pressure
Steam~140℃
(MPa)
Use pressure
High-temperature water~140℃
(MPa)
Standard weight
(kg/roll)
Standard length
(m)
Minimum bend radius
(mm)
TSISTM-9 9.5×16 0~0.3 0~1.0 3.2 20 100
TSISTM-12 12.7×19.5 0~0.3 0~0.5 2.1 10 130
TSISTM-15 15.9×24 0~0.3 0~0.5 3.1 10 150
TSISTM-19 19×28 0~0.3 0~0.5 4.1 10 180
TSISTM-25 25.4×35.5 0~0.3 0~0.5 5.9 10 220



TOYOTOP-E100°C Hose (Heat-resistant, wear-resistant, antistatic)

The TOYOTOP-E 100°C Hose is a heat-resistant, wear-resistant, antistatic hose ideal for the transport of high-temperature resin pellets in resin molding plants.

With heat resistance performance up to 100°C, it can be used for the suction and pressure feed of engineering-plastic type powder and granular materials after predrying. Hose bending and collapsing due to high temperatures can be prevented. As well, in addition to fewer holes in hoses and contamination risks due to fragments of hoses and grounding wires (copper wires), productivity can also be improved by preventing raw material clogging, etc., due to static electricity.

Reinforcement with metal wire enables stable transport with excellent shape retention even at high temperatures, and the use of wear-resistant special urethane for the inner surface of the hose provides at least three times the durability of conventional products (TOYOX product comparison).
As well, unlike hoses with general antistatic agents added, the structure of this hose integrates metal wires which accumulate static electricity and an antistatic band with a grounding function, maintaining stable antistatic effects in the long term. Further, the hose has a seamless interior structure which helps prevent plastic powder clogging.

Grounding is also simple. Just mount the dedicated grounding clip on the antistatic band which runs through the hose exterior, thus reducing work time.

♦ For antistatic hoses ideal for food powder transport.
♦ For antistatic hoses emphasizing chemical and oil resistance.
♦ For antistatic hoses for resin pellet transport with heat resistance up to 50°C.

Standards Chart by Size: Temperature Range -5℃ ~ 100℃

Product Code Inner dia. x Outer dia.
(mm)
Use pressure
50℃
(MPa)
Use pressure
100℃
(MPa)
Standard weight
(kg/roll)
Standard length
(m)
Minimum bend radius
(mm)
TPE100C-32 32×44.6 -0.1~0.2 -0.03~0.1 17.2 20 260
TPE100C-38 38×50.6 -0.1~0.2 -0.03~0.1 19.0 20 300
TPE100C-50 50.8×64.5 -0.1~0.2 -0.03~0.1 28.6 20 400

Packaging: Film packing

Coloring: Natural transparent
*-0.1 MPa is an approximate value. The product may not be used for some applications.

Grounding clip (made specifically for the TOYOTOP-E100°C HOSE)

Part Number Applicable hose Packing Unit
(pc)
TOYOFOODS grounding clip
*This is not a hose clamp.
TFEC-32 TOYOTOP-E100°C-32 10
TFEC-38 TOYOTOP-E100°C-38
TFEC-50 TOYOTOP-E100°C-50



2020.06

Wire Conveyor Belt & System

Reliable technology allows us to disply our maximum abilities.

 Wire conveyor belts are widely used. Not only for transportation but also in heat reating, drying cooling, refrigerating, hreating sterilizing,washing and dehydration.

 In 1947,Kansai Wire Netting Co.,Ltd was the first in Japan to start marketing of wire conveyor belts.Now, they are producing  wire conveyor belts and systems.Based on their experience,Their engineering skill to create excellent production technology to meeting demand of customers and applyling .



Products:

・Direct drive belt and system

・Wire conveyor belts

・Plastic wire

・Woven wire rope mesh

・High temperature belts

・Chain driven belts

・Curve conveyor belts



Please refer to the following catalogue to get more informtion about it.

Kansai Wire Netting CATALOG (1) page 1~14

Kansai Wire Netting CATALOG (2) page 15~32

Kansai Wire Netting CATALOG (3) page 33~46







CFRP(Carbon Firber Reinforced Plastics) is  an extremely strong and light fiber-reinforced plastc which contains carbon firbers.CFRP  are commonly used wherever hight strength-to-Weight ratio and rigidity are requeired,such as aerospeace,supperstructure of ships, automative,civil engineering,sports equipment, and an inreasing number of consumer and technical application.



Use example

Patrs



Medicial                                                                                     Robot.









*Picture is from Internet.





Banner® BL-R(Kuraray Plasticcs Brand)

Characteristics

-Inside is antifriction rubber.

-Superior pressure resintance.

-Developed by using rubber& plastic compound technologies.

-For supply,exhaus and pumping of muddy water,gravel,concrete industrial waste power and grain.

Use Example

Waste connection for Shield Machine(image)









Please refer to the catalog to get more detail.

Kuraray (3) Banner BL-R
