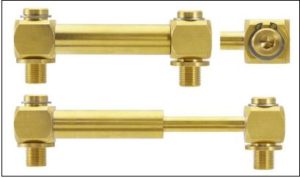

Adjustable Pipe Joint : APJ
++Material
・Body:Brass(C3604)
・O-ring:Fluoric Rubber
・C ring(stopper):Stainless Steal(SUS304)
++Characteristics
・The length can be adjusted within the L~L1 rang.
・It can be used for both cooling water and oil.
・Made in Japan
++Heat Resistance 180℃

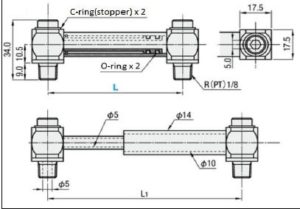

++Size
Part No. | thread | L | L1 |
APJ1-50 | R(PT)1/8 | 50 | 65 |
APJ1-65 | R(PT)1/8 | 65 | 100 |
++Notes
Install it in a balanced manner.The structure have allowance of about 1mm in height difference between right and left.However,if it is off balance,excessive load is applied onto the body,which may lead to water leakage.
