++NEW++ Shock Abosorber with bellows cover “PowerStop® ” (NBK brand)

2017.1.31

 PowerStop® - 8259_1

Long life and high energy absorption type -

Bellows cover

8262_1

<<Character>>

  • High-performance Shock Abosorber with bellows cover on APS type.
  • Usable under circumstance splashing liquids such as coolant.
  • Suppressing splash oils to outside by covering the rod completely.
  • Usable in liquids dut to sealed structure.
  • Long-life 4Million cycles (as reference).
  • Allowed arguments : 2degrees
  • Operational Temp. : -10 - +70degreeC
  • IP Protection class : IP67
  • 3 standard types by impact rate.



<<Material>>

APS-B
Screw Stainless
Lock Nut Steel
Electroless nickel plating
Rod Head Stainless
Bellows cover PTFE

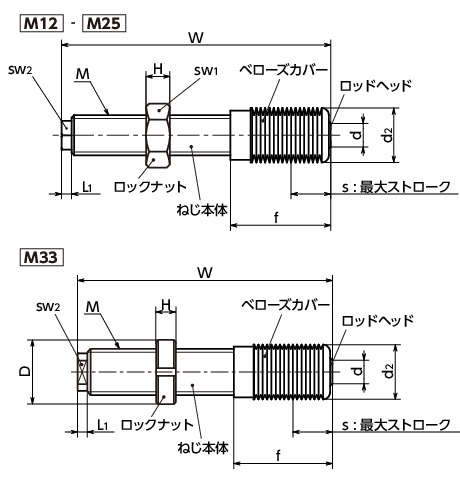

<<Dimensions>>

Item code M d d2 f W H sw1 D sw2 Weight
（g）
APS-M12-1-S-B M12×1 4 17 29 79.5 6 14 - 8 45
APS-M12-1-M-B M12×1 4 17 29 79.5 6 14 - 8 45
APS-M12-1-H-B M12×1 4 17 29 79.5 6 14 - 8 45
APS-M14-1.5-S-B M14×1.5 5 19 35 94 8 17 - 10 80
APS-M14-1.5-M-B M14×1.5 5 19 35 94 8 17 - 10 80
APS-M14-1.5-H-B M14×1.5 5 19 35 94 8 17 - 10 80
APS-M20-1.5-S-B M20×1.5 6 25 44 111 10 24 - 14 170
APS-M20-1.5-M-B M20×1.5 6 25 44 111 10 24 - 14 170
APS-M20-1.5-H-B M20×1.5 6 25 44 111 10 24 - 14 170
APS-M25-1.5-S-B M25×1.5 8 30 56 151 12 30 - 19 345
APS-M25-1.5-M-B M25×1.5 8 30 56 151 12 30 - 19 345
APS-M25-1.5-H-B M25×1.5 8 30 56 151 12 30 - 19 345
APS-M33-1.5-S-B M33×1.5 12 39 70.5 182 10 - 41 24 765
APS-M33-1.5-M-B M33×1.5 12 39 70.5 182 10 - 41 24 765
APS-M33-1.5-H-B M33×1.5 12 39 70.5 182 10 - 41 24 765

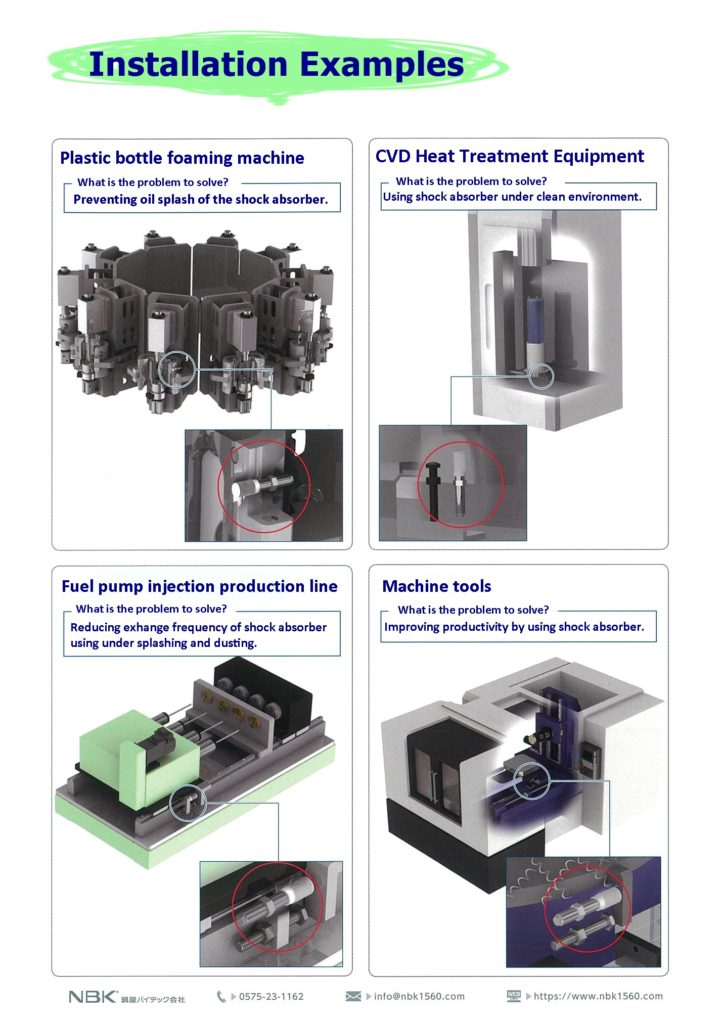

20170131112139-0001
