Flexible Duct Hose AD-2 PVC Pipe for air conditioner for housings buildings ( made in Japan )
| FOB Price: | US $10 - 140 / Meter |
|---|---|
| Min.Order Quantity: | 1 unit |
| Supply Ability | Please ask. |
| Port | TOKYO |
| Payment Terms | T/T |
Quick Details
| Model Number | PVC Air Duct Hose AD-2 |
|---|---|
| Brand Name | Kuraray Plastics |
| Place of origin | Japan |
| Material | PVC |
| Type | Hose |
| Standard or | None |
Packaging & Delivery
| Packaging Details: | Please ask. |
|---|---|
| Delivery Detail: | 5 days after confirming payment |
More Information

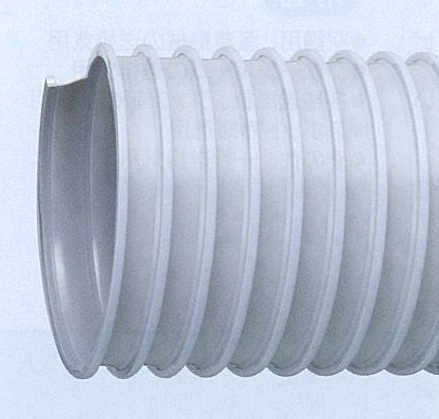

Flexible Duct Hose AD-2
PVC Pipe for air conditioner
for housings buildings
( made in Japan )
Applications
1) Air conditioner
2) Air blower
3) Dust collector
4) Ventilator
Characteristics
1) Light weight
2) Flexible
3) Easy to cut
4) Easy to handle
5) Flat inside
6) High transport efficiency
| Size | Inside
Diameter (I.D.) (mm) |
Outside
Diameter (O.D.) (mm) |
Thick-
ness (mm) |
Pitch
of the Core line (mm) |
Approx
Weight (g/m) |
(ordinary temperture) | Minimum
Bend Radius (mm) |
Length
(m) |
|
| Allowable
Pressure (MPa) |
Resistance
to Nagative Pressure (MPa) |
||||||||
| 25 | 25.4 | 31.4 | 0.8 | 7.4 | 180 | 0.08 | -0.07 | 25 | 50 |
| 32 | 31.8 | 38.0 | 0.8 | 8.7 | 230 | 0.07 | -0.07 | 30 | 50 |
| 38 | 38.2 | 44.5 | 0.8 | 9.3 | 270 | 0.06 | -0.06 | 40 | 50 |
| 50 | 50.8 | 57.8 | 0.8 | 11.2 | 370 | 0.05 | -0.04 | 50 | 50 |
| 65 | 63.5 | 71.2 | 0.8 | 12.0 | 520 | 0.04 | -0.04 | 70 | 50 |
| 75 | 76.2 | 84.6 | 0.8 | 15.0 | 620 | 0.04 | -0.03 | 80 | 30 |
| 90 | 88.9 | 97.7 | 0.8 | 16.0 | 780 | 0.04 | -0.02 | 100 | 30 |
| 100 | 101.6 | 110.8 | 0.8 | 17.0 | 880 | 0.04 | -0.02 | 115 | 30 |
| 125 | 127.0 | 137.6 | 0.8 | 19.0 | 1,160 | 0.04 | -0.02 | 145 | 20 |
| 150 | 152.4 | 164.8 | 0.8 | 20.3 | 1,650 | 0.04 | -0.02 | 175 | 20 |
| 175 | 177.8 | 191.0 | 0.8 | 21.5 | 2,000 | 0.04 | -0.01 | 190 | 20 |
| 200 | 203.2 | 217.2 | 0.8 | 23.0 | 2,260 | 0.04 | -0.01 | 210 | 20 |
| 225 | 228.6 | 243.1 | 1.1 | 24.0 | 2,550 | 0.03 | -0.01 | 240 | 10 |
| 250 | 254.0 | 268.5 | 1.1 | 24.0 | 2,850 | 0.03 | -0.005 | 270 | 10 |
| 275 | 280.0 | 298.0 | 1.1 | 28.0 | 3,150 | 0.03 | -0.005 | 315 | 10 |
| 300 | 304.0 | 322.0 | 1.1 | 28.0 | 3,400 | 0.03 | -0.005 | 380 | 10 |
Working temperature : -10~50℃( continuous duty : Max 40℃ )

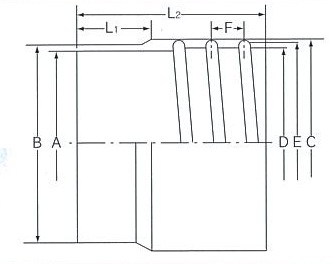

special Hose Cuffs for AD-2, Maltina
