Super Tom Fusso-easy Hose
- Product Detail
- Quick Details
- Packaging & Delivery
Super Tom Fusso-easy Hose
| FOB Price: | |
|---|---|
| Min.Order Quantity: | 20meter/roll |
| Supply Ability | 10~20rolls/month |
| Port | Tokyo Port/Air port |
| Payment Terms | T/T |
Quick Details
| Model Number | FE |
|---|---|
| Brand Name | TOGAWA Industry |
| Place of origin | Made in Japan |
| Material | fluorine resin |
| Type | FE-9,12,15,19,25 |
| Standard or | None |
Packaging & Delivery
| Packaging Details: | |
|---|---|
| Delivery Detail: | 2weeks |
More Information
| Nominal designation | Inner diameter (mm) | Outer diameter (mm) | Regular size (m) | Maximum working pressure MPa at20℃ |
Minimum bending radius (mm) | Weight (kg/m) | Regular size weight (kg) |
|---|---|---|---|---|---|---|---|
| FE-9 | 9 | 15 | 20 | 1.1 | 45 | 0.141 | 2.8 |
| FE-12 | 12 | 18 | 20 | 1 | 60 | 0.177 | 3.5 |
| FE-15 | 15 | 22 | 20 | 0.8 | 75 | 0.253 | 5.1 |
| FE-19 | 19 | 26 | 20 | 0.7 | 95 | 0.308 | 6.2 |
| FE-25 | 25 | 33 | 20 | 0.6 | 125 | 0.451 | 9 |

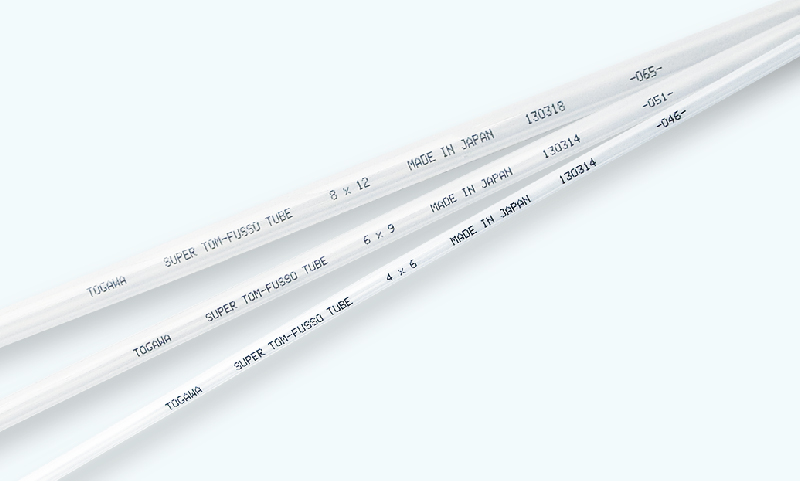

The super soft fusso hose with a conductive resin line.
【Features】
A versatile chemical hose is now available!
As a conductive sleeve is applied around the outer layer, the grounding can be completed just by tightening the metallic joint (when the resistance value is “9× 106 W” or less, and the whole length is 15m or less).
- For piping of paints, solvents, chemicals, drinking water and foods.
- Excellent solvent and chemical resistance and low leachability.
Specifications: Working temperature limit: Between -20℃ and + 60℃
