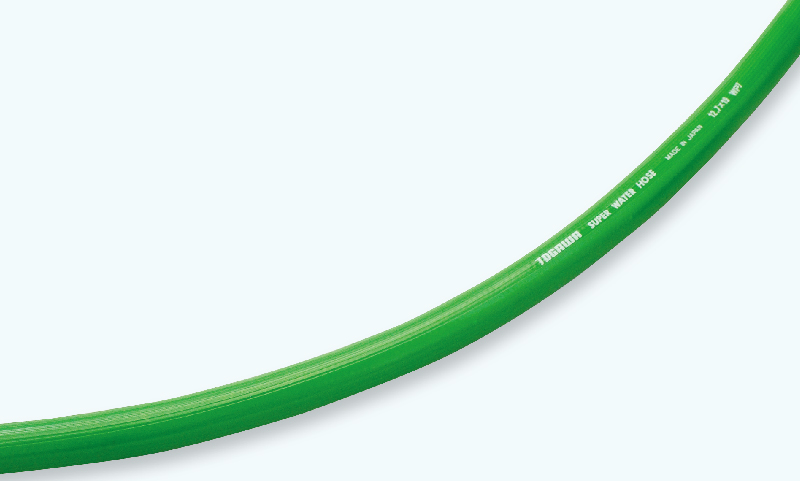

Super Water Hose(Brand:Togawa Industry)
- Product Detail
- Quick Details
- Packaging & Delivery
Super Water Hose(Brand:Togawa Industry)
| FOB Price: | 3.1~13USD/meter(EXW-TOKYO Price) |
|---|---|
| Min.Order Quantity: | 20meter/roll |
| Supply Ability | 10~20rolls/month |
| Port | Tokyo port, Tokyo airport |
| Payment Terms | T/T |
Quick Details
| Model Number | SW |
|---|---|
| Brand Name | TOGAWA Industry |
| Place of origin | Made in Japan |
| Material | PVC Soft |
| Type | SW-12,15,19,25,32,38 |
| Standard or | None |
Packaging & Delivery
| Packaging Details: | |
|---|---|
| Delivery Detail: | 2weeks |
More Information
| Nominal designation | Inner diameter (mm) | Outer diameter (mm) | Regular size (m) | Maximum working pressure MPa at20℃ |
Brust pressure MPa at 20℃ | Minimum bending radius (mm) | Weight (kg/m) | Regular size weight (kg) | Lines |
|---|---|---|---|---|---|---|---|---|---|
| SW-12 | 12.7 | 19 | 100 | 0.7 | 4 | 63.5 | 0.195 | 19.5 | ● |
| SW-15 | 15 | 22.5 | 100 | 0.7 | 4 | 75 | 0.255 | 25.5 | ● |
| SW-19 | 19 | 27 | 100 | 0.7 | 3 | 95 | 0.38 | 38 | ● |
| SW-25 | 25 | 33.5 | 100 | 0.7 | 3 | 125 | 0.48 | 48 | ● |
| SW-32 | 32 | 43 | 60 | 0.5 | 2 | 160 | 0.8 | 48 | ● |
| SW-38 | 38 | 50 | 60 | 0.5 | 2 | 190 | 1.02 | 61.2 | ● |
Appropriate for washing and sprinkling water on vessels, gas stations, factories, farmlands, golf courses etc.
- Washing and sprinkling water on vessels, factories, farmlands, golf courses, engineering sites, etc.
- Lighter than rubber hoses and superior in workability.
Specifications: Working temperature limit: Between -5℃ and + 60℃
