Foam Sun Braid Hose
- Product Detail
- Quick Details
- Packaging & Delivery
Foam Sun Braid Hose
| FOB Price: | |
|---|---|
| Min.Order Quantity: | 50meters/roll |
| Supply Ability | 10~20rolls/month |
| Port | Tokyo port, Tokyo airport |
| Payment Terms | T/T |
Quick Details
| Model Number | FV |
|---|---|
| Brand Name | TOGAWA Industry |
| Place of origin | Made in Japan |
| Material | PVC |
| Type | FB-12,15,19 |
| Standard or | None |
Packaging & Delivery
| Packaging Details: | |
|---|---|
| Delivery Detail: | 2weeks |
More Information
| Nominal designation | Inner diameter (mm) | Outer diameter (mm) | Regular size (m) | Maximum working pressure MPa at20℃ |
Brust pressure MPa at 20℃ |
Minimum bending radius (mm) | Weight (kg/m) | Regular size weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FB-12 | 12 | 24 | 50 | 1 | 5 | 48 | 0.433 | 21.7 |
| FB-15 | 15 | 29 | 50 | 0.8 | 4 | 60 | 0.612 | 30.6 |
| FB-19 | 19 | 32 | 50 | 0.7 | 3.8 | 76 | 0.671 | 33.6 |

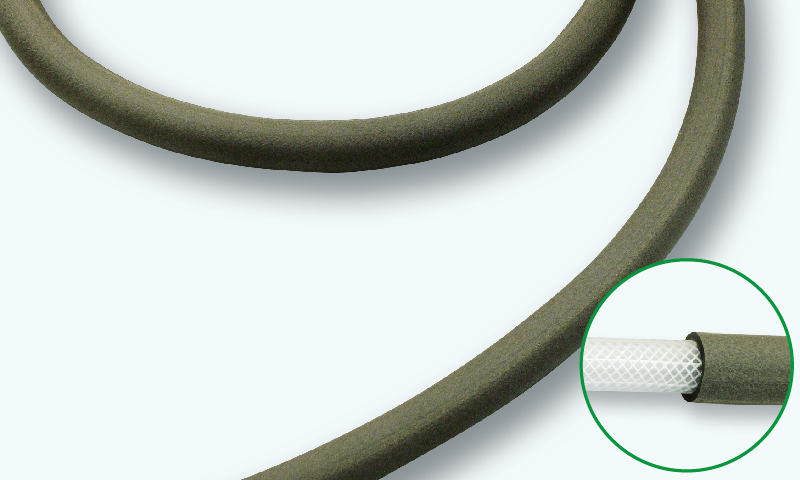

A hose for cooling water used for printing or molding machines. The foamed materials keep away waterdrops from the hose surface.
- For the cooling water used for printing or molding machine (for condensation prevention).
- The foamed materials keep away waterdrops from the hose surface.
Specifications: Working temperature limit: Between -5℃ and + 60℃
