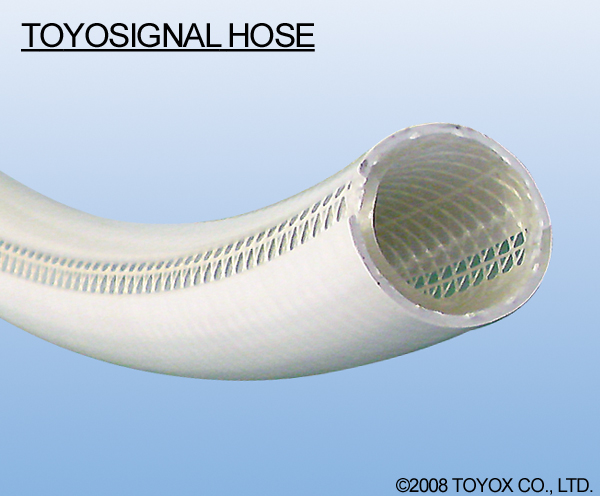

TOYOSignal Hose
| FOB Price: | 3.1~13.7USD/meter(EXW-Tokyo Price) |
|---|---|
| Min.Order Quantity: | φ9~15:100meters φ19~25:50meters |
| Supply Ability | 10~20rolls/month |
| Port | Tokyo port, Tokyo airport |
| Payment Terms | T/T |
Quick Details
| Model Number | TOYOSignal Hose |
|---|---|
| Brand Name | TOYoX |
| Place of origin | Japan |
| Material | Soft PVC |
| Type | TSG-9,12,15,19,25 |
| Standard or | None |
Packaging & Delivery
| Packaging Details: | Film packing |
|---|---|
| Delivery Detail: | 2weeks |
More Information
Hose Features
| [High pressure resistance] | With 1.5 times the pressure resistance of ordinary pressure resistant hoses, the TOYOSIGNAL Hose provides worry-free performance. All sizes can withstand 1.0 Mpa, and provide easy maintenance. Note: Use with genuine TOYOCONNECTOR couplings. |
| [Fluid verification] | The transparent lines make it possible to verify the fluid inside and check for twisting when installing. |
| [Lightweight and adaptable] | Approximately 40% lighter than rubber hoses for more efficient installation. |
| Made of soft vinyl chloride for pressure resistance in pressure feeds, the TOYOSIGNAL Hose provides higher pressure resistance than conventional hoses, particularly for use as air lines in plants. It was developed to provide worry-free performance. |
|
Standards Chart by Size
| Product no. | Inner dia. × Outer dia. | When connecting the TOYOCONNECTOR coupling | Standard weight | Standard length | Minimum bend radius | Packaging | Color | |
| mm | Use pressure （MPa） |
Range of temperature °C |
kg/Roll | m | mm | |||
| TSG-9 | 9×15 | 0 to 1.5 | -5 to 60 | 15 | 100 | 45 | Bobbin style | Light gray with transparent lines |
| TSG-12 | 12×18 | 0 to 1.5 | 19 | 100 | 55 | |||
| TSG-15 | 15×22 | 0 to 1.5 | 27 | 100 | 80 | |||
| TSG-19 | 19×26 | 0 to 1.0 | 16 | 50 | 95 | |||
| TSG-25 | 25×33 | 0 to 1.0 | 25 | 50 | 140 | |||
Note: The TOYOSIGNAL Hose uses only the TOYOCONNECTOR coupler. If a different coupling is used, the hose may not perform correctly and maintenance may be difficult. We therefore recommend using only the TOYOCONNECTOR with this hose.
| Applications | For factory equipment hoses and various equipment | ||
|---|---|---|---|
| Fluids | Oils Chemicals (including gases, pure water) Powder Air Water, Hot water | ||
| Material | Soft PVC | Reinforcement material | Polyester threads |
| Features |
|
||
| Temperature range | -5°C-60°C | ||
