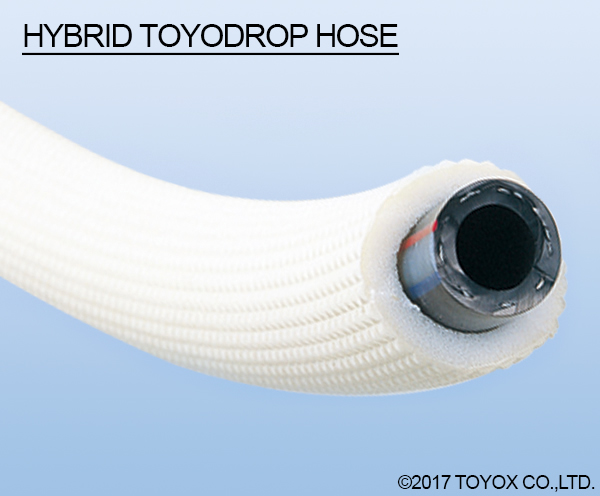

HYBRID TOYODROP HOSE(Coolant Water Hose)
More Information
Hose Features
| [Attachment efficiency] |
There is no need to cover with insulation, making the attachment process faster and easier. |
| [Prevents problems caused by condensation] |
Electric shock due to condensation and injuries caused by wet floors are prevented while eliminating the need to wipe away and clean condensation. |
| [Faster cutting] |
Marks are present along the insulation every meter, making cutting easy. |
| [Energy-efficient] |
The shape-retaining HYBRID TOYODROP HOSE has little pressure loss, reducing plant power costs. |
| [Prevents production problems] |
Resistant to collapsing, fluids are not stopped during conveyance, preventing production problems. |
| [Flexible for narrow spaces] |
More resistant to breaking and collapsing than braided hoses makes installation easy even in tight spaces. |
| More resistant to breaking and collapsing than braided hoses, energy-saving and useful in preventing production problems. A polyethylene foam heat-resistant material is integrated with a pressure-resistant hose having a hybrid reinforced construction of resin wire and polyester threads to prevent condensation. Perfect for preventing dirty floors, electric shock and injury to workers. |
|
Standards Chart by Size
| Outer appearance |
Product no. |
Hose size |
Thickness |
Use pressure (MPa) |
Range of temperature |
Standard weight |
Standard length |
Minimum bend radius |
| mm |
mm |
23℃ |
60℃ |
°C |
kg |
m |
mm |
External color: ivory  |
HTD-9 |
9×15×23 |
4 |
0～1.5 |
0～1.0 |
-5～60 |
9 |
50 |
40 |
| HTD-12 |
12×18×26 |
4 |
0～1.2 |
0～0.8 |
10 |
50 |
50 |
| HTD-15 |
15×22×30 |
4 |
0～1.0 |
0～0.8 |
14 |
50 |
70 |
| HTD-19 |
19×26×36 |
5 |
0～1.0 |
0～0.6 |
16 |
40 |
90 |
| HTD-25 |
25×33×45 |
6 |
0～1.0 |
0～0.6 |
13 |
25 |
120 |
External color: gray  |
HTD-9G |
9×15×23 |
4 |
0～1.5 |
0～1.0 |
9 |
50 |
40 |
| HTD-12G |
12×18×26 |
4 |
0～1.2 |
0～0.8 |
10 |
50 |
50 |
| HTD-15G |
15×22×30 |
4 |
0～1.0 |
0～0.8 |
14 |
50 |
70 |
| HTD-19G |
19×26×36 |
5 |
0～1.0 |
0～0.6 |
16 |
40 |
90 |
| HTD-25G |
25×33×45 |
6 |
0～1.0 |
0～0.6 |
13 |
25 |
120 |
Note: When using the HYBRID TOYODROP HOSE, an insulating cover or TD tape is needed on the terminal to prevent condensation.
| Applications |
Coolant water supply and drain hoses (condensation-resistant) |
| Fluids |
Air Water, Hot water |
| Material |
Insulating materials: Polyethylene foam・Soft PVC |
Reinforcement material |
High-tensile force plastic wire・Polyester threads |
| Features |
- Easy disposal: ◎
- Insulating: ○
- Prevents condensation: ◎
- Shape-retaining: ○
- Low elution: ○
- Chemical-resistance: ○
- Flexibility: ○
- Pressure feed: ◎
|
