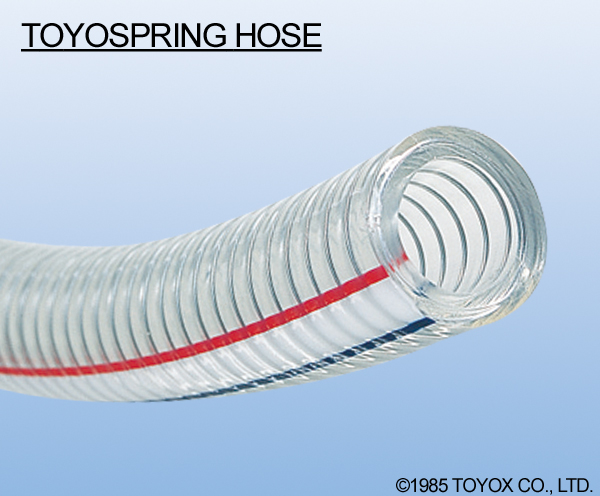

TOYOSPRING HOSE(PVC Vaccum Hose)
More Information
Hose Features
| [Resistant to collapsing] |
Resistance to collapsing and breaking prevents fluids from stopping up, eliminating worries. |
| [Oil-resistant for long life] |
More resistant to oil than the TOYORON, the TOYOSPRING Hose provides long life. |
| [Smooth inner surface] |
Compared with ordinary vacuum hoses, the inner surface of the TOYOSPRING Hose is flat, meaning little residue remains inside, making fluid changes a breeze. |
| [Fluid verification] |
With superior transparency, it is easy to confirm the fluid inside. |
| Compared with ordinary vacuum hoses, the inner surface of the TOYOSPRING Hose is flat, meaning little residue remains inside, making fluid changes a breeze. |
|
Standards Chart by Size
| Product no. |
Inner dia. × Outer dia. |
Use pressure |
Range of temperature |
Standard weight |
Standard length |
Minimum bend radius |
Packaging |
Color |
| mm |
MPa |
°C |
kg/Roll |
m |
mm |
| TS-6 |
6×11 |
-0.1 to 0.8 |
-5 to 60 |
11 |
100 |
25 |
Bobbin style |
Transparent with attractive lines |
| TS-8 |
8×13.5 |
-0.1 to 0.8 |
14 |
100 |
35 |
| TS-9 |
9×15 |
-0.1 to 0.8 |
17 |
100 |
40 |
| TS-12 |
12×18 |
-0.1 to 0.5 |
23 |
100 |
50 |
| TS-15 |
15×22 |
-0.1 to 0.5 |
32 |
100 |
60 |
| TS-19 |
19×26 |
-0.1 to 0.4 |
21 |
50 |
80 |
| TS-25 |
25×33 |
-0.1 to 0.4 |
27 |
50 |
100 |
| TS-32 |
32×41 |
-0.1 to 0.3 |
31 |
40 |
130 |
Film packing |
| TS-38 |
38×48 |
-0.1 to 0.3 |
39 |
40 |
150 |
| TS-45 |
45×56 |
-0.1 to 0.3 |
55 |
40 |
189 |
| TS-50 |
50×62 |
-0.1 to 0.3 |
60 |
40 |
200 |
| TS-63 |
63×80 |
-0.1 to 0.2 |
54 |
20 |
265 |
| TS-75 |
75×92 |
-0.1 to 0.2 |
62 |
20 |
310 |
| TS-90 |
90×108 |
-0.1 to 0.2 |
44 |
10 |
370 |
| TS-100 |
100×118 |
-0.1 to 0.2 |
48 |
10 |
410 |
| Applications |
For factory equipment hoses and various equipment |
| Fluids |
Oils Chemicals (including gases, pure water) Powder Air Water, Hot water |
| Material |
Soft PVC |
Reinforcement material |
Hard steel wire |
| Features |
- Insulating: ○
- Shape-retaining: ◎
- Low elution: ○
- Chemical-resistance: ○
- Oil-resistance: ○
- Transparence: ◎
- Flexibility: ○
- Vacuum feed: ◎
- Pressure feed: ◎
|
| Temperature range |
-5°C-60°C |
