ECORON HOSE (Chemical Resistant Hose)
- Product Detail
- Quick Details
- Packaging & Delivery
ECORON HOSE (Chemical Resistant Hose)
| FOB Price: | US $13 - 42 / Meter |
|---|---|
| Min.Order Quantity: | 1 roll |
| Supply Ability | 10 rolls |
| Port | Tokyo |
| Payment Terms | T/T |
Quick Details
| Model Number | ECORON EC-type |
|---|---|
| Brand Name | TOYOX |
| Place of origin | Japan |
| Material | Polyolefin plastic inner tube |
| Type | Hose |
| Standard or | None |
Packaging & Delivery
| Packaging Details: | Please ask. |
|---|---|
| Delivery Detail: | 10 working days from payment confirmation |
More Information

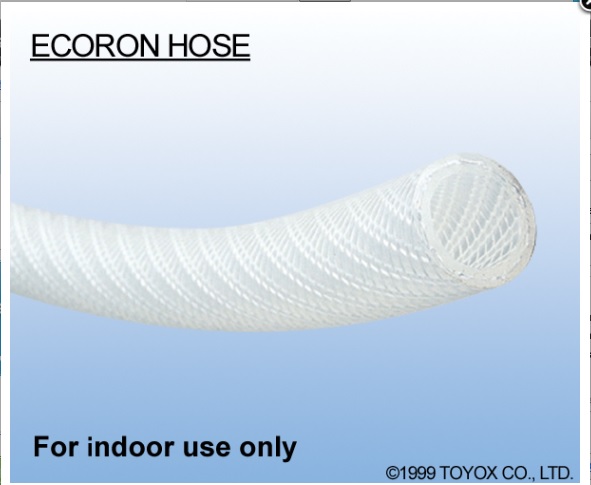

ECORON HOSE
(Chemical Resistant Hose)
| [Chemical-resistant and long service life] | The inner surface of the hose is made of polyolefin resin for superior chemical resistance. |
| [Environmentally friendly] | Safe for the environment, the ECORON Hose does not emit dioxins or other harmful gases, even when burned. |
| [Low leaching] | The low level of hose material leaching in fluids means no worries about contamination. |
| [Low odor] | Worry-free, without the typical odor of vinyl chloride. |
| [Compliant with Food Sanitation Act regulations] | Compliant with the Food Sanitation Act (Ministry of Health, Labour and Welfare Public Notice Nos. 201 of 2006, 52 of 1951) for worry-free performance. Note: This hose does not use phthalate plasticizers. |
| The polyolefin resin construction designed for pressure feeds does not use vinyl chloride, so there is little leaching in fluids, making the ECORON perfect for pressure feeding foods and chemicals. |
|
| Product no. | Inner dia. × Outer dia. | Use pressure | Range of temperature | Standard weight | Standard length | Minimum bend radius | Reinforced construction | Packaging | Color | |
| mm | 23°C | 60°C | °C | kg/Roll | m | mm | ||||
| EC-6 | 6×11 | 0 to 1.0 | 0 to 0.5 | -5 to 60 | 8 | 100 | 25 | Braided | Bobbin style | Milky white |
| EC-8 | 8×13.5 | 0 to 1.0 | 0 to 0.5 | 10 | 100 | 35 | ||||
| EC-9 | 9×15 | 0 to 0.8 | 0 to 0.5 | 15 | 100 | 50 | Special weave | |||
| EC-12 | 12×18 | 0 to 0.8 | 0 to 0.4 | 16 | 100 | 70 | ||||
| EC-15 | 15×22 | 0 to 0.8 | 0 to 0.4 | 23 | 100 | 80 | ||||
| EC-19 | 19×26 | 0 to 0.8 | 0 to 0.4 | 14 | 50 | 130 | ||||
| EC-25 | 25×33 | 0 to 0.5 | 0 to 0.3 | 21 | 50 | 170 | ||||
| EC-32 | 32×41 | 0 to 0.4 | 0 to 0.2 | 26 | 40 | 200 | Braided | Film packing | ||
| EC-38 | 38×48 | 0 to 0.4 | 0 to 0.2 | 34 | 40 | 230 | ||||
| EC-50 | 50×62 | 0 to 0.3 | 0 to 0.2 | 50 | 40 | 290 | ||||
The polyolefin resin construction designed for pressure feeds does not use vinyl chloride, so there is little leaching in fluids, making the ECORON perfect for pressure feeding foods and chemicals.
