Digital Position Indicator "RDSS"

Stainless hub (NBK brand)

Machine elements





















































































<<Materials>>

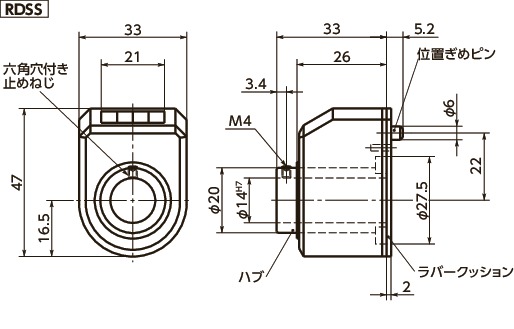

	RDSS
Body	Nylon6 (Orange)
Hub	SUS303
Set Screw with Hex hole	SUS303
Rubber cusion	Polyethylene











































<<Characters>>

• Stainless-steel hub is superior to corrosive-resistant.
• Digital indicate for feed amount can be displayed by just moutaining on  feed rotation shaft.
• Selectable types by feed rotation shaft pitch.
• Using dedicated spacer RDS-S is applicable to situations like long shafts.
• Rubber cusion & Hex. Hole set screw for clamping rotation shaft are attached to all types.
• High sealing property due to prevention from the ingress of water.

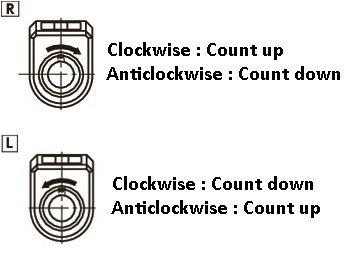

• 2 types of rotating directions are available.

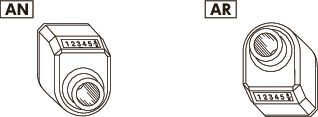

• 2 types of display directions are available.





















































• Gray body color is also available. Please contact us.



















What is indicator?

• Indicator is machine elements to display counting numbers.
• Digital position indicator displays works displacement by mounting on the feed rotation shaft.
• Disital display is effective for efficiency & standardise of work due to easily replicatable without leaning on worker's guessing and sense.
