++NEW++ Clamp Lever with Spring Washer LDM-W / LDMS-W (NBK brand)

2017.2.1

Clamp Lever with Spring Washer

LDM-W / LDMS-W (NBK brand)

264_1











































267_2



















































<<Material & Finishing>>









LDM-W LDMS-W
Lever Zinc die-cast Zinc die-cast
electrostatic spray coating electrostatic spray coating
Screw SUM22L SUS303
alkaline blackening
Spring Washer SUS304 SUS304
Flat Washer SUS304 SUS303
Set screw Steel SUS303
alkaline blackening
Spring SWPB Stainless wire











































<<Characters>>

  • Clamp Lever with Spring Washer.
  • Unnecessary to assemble the washer.
  • The Specially Shaped Flat Washer (Patent-pending) can prevent from dropping spring washer.
  • The flat whasher can be removed by rolling along screw thread. The spring washer can be replaced to other washer.
  • The lever part is coated with frosed matte type electrostatic spray for inconspicuous scratches.
  • The lever has 4 color variations. You can select by Suffix code.



271_2





























Suffix code Lever colors
BK Mat Black
SG Mat Silver
OR Mat Orange
RD Mat Red

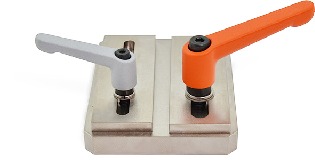

<<Use Example>>

By ensuring the thickness from combination of flat washer and spring washer, this can be used for long-shape hole.



278_2































The width of long hole should be Screw nominal + 0.5mm or less.

















Item Code M (Coarse Thread) Lm R H H' h s D d Ds ts Dw tw s1 Tooth Max. Load Max. Tightening Weight Body
(g) Color
LDM-5-12-W-BK M5 12 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 36 BK
LDM-5-12-W-OR M5 12 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 36 OR
LDM-5-12-W-RD M5 12 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 36 RD
LDM-5-12-W-SG M5 12 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 36 SG
LDM-5-16-W-BK M5 16 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 36 BK
LDM-5-16-W-OR M5 16 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 36 OR
LDM-5-16-W-RD M5 16 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 36 RD
LDM-5-16-W-SG M5 16 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 36 SG
LDM-5-20-W-BK M5 20 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 36 BK
LDM-5-20-W-OR M5 20 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 36 OR
LDM-5-20-W-RD M5 20 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 36 RD
LDM-5-20-W-SG M5 20 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 36 SG
LDM-5-25-W-BK M5 25 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 37 BK
LDM-5-25-W-OR M5 25 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 37 OR
LDM-5-25-W-RD M5 25 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 37 RD
LDM-5-25-W-SG M5 25 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 37 SG
LDM-5-32-W-BK M5 32 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 38 BK
LDM-5-32-W-OR M5 32 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 38 OR
LDM-5-32-W-RD M5 32 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 38 RD
LDM-5-32-W-SG M5 32 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 38 SG
LDM-5-40-W-BK M5 40 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 39 BK
LDM-5-40-W-OR M5 40 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 39 OR
LDM-5-40-W-RD M5 40 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 39 RD
LDM-5-40-W-SG M5 40 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 39 SG
LDM-5-50-W-BK M5 50 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 40 BK
LDM-5-50-W-OR M5 50 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 40 OR
LDM-5-50-W-RD M5 50 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 40 RD
LDM-5-50-W-SG M5 50 45 34 37.5 24.5 4 13 10 9 1 10 0.5 4 18 60 3.9 40 SG
LDM-6-12-W-BK M6 12 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 36 BK
LDM-6-12-W-OR M6 12 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 36 OR
LDM-6-12-W-RD M6 12 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 36 RD
LDM-6-12-W-SG M6 12 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 36 SG
LDM-6-16-W-BK M6 16 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 36 BK
LDM-6-16-W-OR M6 16 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 36 OR
LDM-6-16-W-RD M6 16 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 36 RD
LDM-6-16-W-SG M6 16 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 36 SG
LDM-6-20-W-BK M6 20 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 37 BK
LDM-6-20-W-OR M6 20 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 37 OR
LDM-6-20-W-RD M6 20 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 37 RD
LDM-6-20-W-SG M6 20 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 37 SG
LDM-6-25-W-BK M6 25 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 38 BK
LDM-6-25-W-OR M6 25 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 38 OR
LDM-6-25-W-RD M6 25 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 38 RD
LDM-6-25-W-SG M6 25 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 38 SG
LDM-6-32-W-BK M6 32 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 39 BK
LDM-6-32-W-OR M6 32 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 39 OR
LDM-6-32-W-RD M6 32 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 39 RD
LDM-6-32-W-SG M6 32 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 39 SG
LDM-6-40-W-BK M6 40 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 41 BK
LDM-6-40-W-OR M6 40 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 41 OR
LDM-6-40-W-RD M6 40 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 41 RD
LDM-6-40-W-SG M6 40 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 41 SG
LDM-6-50-W-BK M6 50 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 42 BK
LDM-6-50-W-OR M6 50 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 42 OR
LDM-6-50-W-RD M6 50 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 42 RD
LDM-6-50-W-SG M6 50 45 34 37.5 24.5 4 13 10 12 2 12 0.6 5 18 100 5.5 42 SG
LDM-8-12-W-BK M8 12 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 81 BK
LDM-8-12-W-OR M8 12 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 81 OR
LDM-8-12-W-RD M8 12 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 81 RD
LDM-8-12-W-SG M8 12 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 81 SG
LDM-8-16-W-BK M8 16 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 82 BK
LDM-8-16-W-OR M8 16 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 82 OR
LDM-8-16-W-RD M8 16 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 82 RD
LDM-8-16-W-SG M8 16 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 82 SG
LDM-8-20-W-BK M8 20 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 83 BK
LDM-8-20-W-OR M8 20 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 83 OR
LDM-8-20-W-RD M8 20 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 83 RD
LDM-8-20-W-SG M8 20 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 83 SG
LDM-8-25-W-BK M8 25 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 85 BK
LDM-8-25-W-OR M8 25 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 85 OR
LDM-8-25-W-RD M8 25 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 85 RD
LDM-8-25-W-SG M8 25 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 85 SG
LDM-8-32-W-BK M8 32 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 86 BK
LDM-8-32-W-OR M8 32 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 86 OR
LDM-8-32-W-RD M8 32 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 86 RD
LDM-8-32-W-SG M8 32 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 86 SG
LDM-8-40-W-BK M8 40 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 89 BK
LDM-8-40-W-OR M8 40 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 89 OR
LDM-8-40-W-RD M8 40 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 89 RD
LDM-8-40-W-SG M8 40 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 89 SG
LDM-8-50-W-BK M8 50 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 92 BK
LDM-8-50-W-OR M8 50 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 92 OR
LDM-8-50-W-RD M8 50 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 92 RD
LDM-8-50-W-SG M8 50 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 92 SG
LDM-8-63-W-BK M8 63 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 96 BK
LDM-8-63-W-OR M8 63 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 96 OR
LDM-8-63-W-RD M8 63 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 96 RD
LDM-8-63-W-SG M8 63 63 45 49 31 6.5 17.5 13.5 15 2 16 0.8 6 24 180 10 96 SG
LDM-10-16-W-BK M10 16 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 135 BK
LDM-10-16-W-OR M10 16 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 135 OR
LDM-10-16-W-RD M10 16 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 135 RD
LDM-10-16-W-SG M10 16 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 135 SG
LDM-10-20-W-BK M10 20 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 136 BK
LDM-10-20-W-OR M10 20 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 136 OR
LDM-10-20-W-RD M10 20 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 136 RD
LDM-10-20-W-SG M10 20 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 136 SG
LDM-10-25-W-BK M10 25 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 139 BK
LDM-10-25-W-OR M10 25 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 139 OR
LDM-10-25-W-RD M10 25 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 139 RD
LDM-10-25-W-SG M10 25 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 139 SG
LDM-10-32-W-BK M10 32 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 142 BK
LDM-10-32-W-OR M10 32 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 142 OR
LDM-10-32-W-RD M10 32 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 142 RD
LDM-10-32-W-SG M10 32 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 142 SG
LDM-10-40-W-BK M10 40 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 146 BK
LDM-10-40-W-OR M10 40 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 146 OR
LDM-10-40-W-RD M10 40 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 146 RD
LDM-10-40-W-SG M10 40 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 146 SG
LDM-10-50-W-BK M10 50 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 151 BK
LDM-10-50-W-OR M10 50 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 151 OR
LDM-10-50-W-RD M10 50 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 151 RD
LDM-10-50-W-SG M10 50 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 151 SG
LDM-10-63-W-BK M10 63 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 158 BK
LDM-10-63-W-OR M10 63 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 158 OR
LDM-10-63-W-RD M10 63 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 158 RD
LDM-10-63-W-SG M10 63 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 158 SG
LDM-10-80-W-BK M10 80 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 166 BK
LDM-10-80-W-OR M10 80 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 166 OR
LDM-10-80-W-RD M10 80 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 166 RD
LDM-10-80-W-SG M10 80 78 54 58 36 8 21 16 18 3 20 1 7 26 290 16 166 SG
