Clamp Lever with Flat Washer

LDM-LW / LDMS-LW













































<<Material & Finishing>>



	LDM-LW	LDMS-LW
Lever	Zinc die-cast	Zinc die-cast
	electrostatic spray coating	electrostatic spray coating
Screw	SUM22L	SUS303
	alkaline blackening
Flat Washer	SUS303	SUS303
Set screw	Steel	SUS303
	alkaline blackening
Spring	SWPB	Stainless wire









































<<Characters>>

• Clamp Lever with Flat Washer.
• Flat Washer is assembled in weight reducing space and prevent from dropping and unnecessary to assemble the washer.
• Outer Diameter of Flat Washer is Approx. 3 times of screw diameter. Securing enough erea for clamping part.
• Suitable for clamping such as resin parts unable to raise pressure or long hole parts.
• The lever part is coated with frosed matte type electrostatic spray for inconspicuous scratches.
• The lever has 4 color variations. You can select by Suffix code.



Suffix code	Lever colors
BK	Mat Black
SG	Mat Silver
OR	Mat Orange
RD	Mat Red

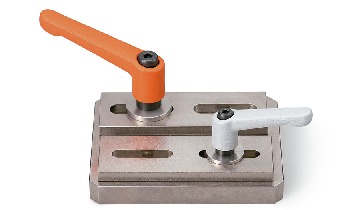

<<Use Example>>









Item Code	M (coarse thread)	Lm	R	H	H'	h	s	D	d	Dw	tw	s1	teeth	Max. load	Max tightening	Weight	Body
																(g)	Color
LDM-5-12-LW20-BK	M5	12	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	41	BK
LDM-5-12-LW20-OR	M5	12	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	41	OR
LDM-5-12-LW20-RD	M5	12	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	41	RD
LDM-5-12-LW20-SG	M5	12	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	41	SG
LDM-5-16-LW20-BK	M5	16	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	41	BK
LDM-5-16-LW20-OR	M5	16	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	41	OR
LDM-5-16-LW20-RD	M5	16	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	41	RD
LDM-5-16-LW20-SG	M5	16	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	41	SG
LDM-5-20-LW20-BK	M5	20	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	41	BK
LDM-5-20-LW20-OR	M5	20	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	41	OR
LDM-5-20-LW20-RD	M5	20	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	41	RD
LDM-5-20-LW20-SG	M5	20	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	41	SG
LDM-5-25-LW20-BK	M5	25	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	42	BK
LDM-5-25-LW20-OR	M5	25	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	42	OR
LDM-5-25-LW20-RD	M5	25	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	42	RD
LDM-5-25-LW20-SG	M5	25	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	42	SG
LDM-5-32-LW20-BK	M5	32	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	43	BK
LDM-5-32-LW20-OR	M5	32	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	43	OR
LDM-5-32-LW20-RD	M5	32	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	43	RD
LDM-5-32-LW20-SG	M5	32	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	43	SG
LDM-5-40-LW20-BK	M5	40	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	44	BK
LDM-5-40-LW20-OR	M5	40	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	44	OR
LDM-5-40-LW20-RD	M5	40	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	44	RD
LDM-5-40-LW20-SG	M5	40	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	44	SG
LDM-5-50-LW20-BK	M5	50	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	45	BK
LDM-5-50-LW20-OR	M5	50	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	45	OR
LDM-5-50-LW20-RD	M5	50	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	45	RD
LDM-5-50-LW20-SG	M5	50	45	34	37.5	24.5	4	13	10	20	2	4	18	60	3.9	45	SG
LDM-6-12-LW20-BK	M6	12	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	41	BK
LDM-6-12-LW20-OR	M6	12	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	41	OR
LDM-6-12-LW20-RD	M6	12	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	41	RD
LDM-6-12-LW20-SG	M6	12	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	41	SG
LDM-6-16-LW20-BK	M6	16	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	41	BK
LDM-6-16-LW20-OR	M6	16	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	41	OR
LDM-6-16-LW20-RD	M6	16	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	41	RD
LDM-6-16-LW20-SG	M6	16	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	41	SG
LDM-6-20-LW20-BK	M6	20	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	42	BK
LDM-6-20-LW20-OR	M6	20	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	42	OR
LDM-6-20-LW20-RD	M6	20	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	42	RD
LDM-6-20-LW20-SG	M6	20	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	42	SG
LDM-6-25-LW20-BK	M6	25	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	43	BK
LDM-6-25-LW20-OR	M6	25	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	43	OR
LDM-6-25-LW20-RD	M6	25	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	43	RD
LDM-6-25-LW20-SG	M6	25	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	43	SG
LDM-6-32-LW20-BK	M6	32	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	44	BK
LDM-6-32-LW20-OR	M6	32	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	44	OR
LDM-6-32-LW20-RD	M6	32	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	44	RD
LDM-6-32-LW20-SG	M6	32	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	44	SG
LDM-6-40-LW20-BK	M6	40	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	46	BK
LDM-6-40-LW20-OR	M6	40	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	46	OR
LDM-6-40-LW20-RD	M6	40	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	46	RD
LDM-6-40-LW20-SG	M6	40	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	46	SG
LDM-6-50-LW20-BK	M6	50	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	47	BK
LDM-6-50-LW20-OR	M6	50	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	47	OR
LDM-6-50-LW20-RD	M6	50	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	47	RD
LDM-6-50-LW20-SG	M6	50	45	34	37.5	24.5	4	13	10	20	2	5	18	100	5.5	47	SG
LDM-8-12-LW25-BK	M8	12	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	91	BK
LDM-8-12-LW25-OR	M8	12	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	91	OR
LDM-8-12-LW25-RD	M8	12	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	91	RD
LDM-8-12-LW25-SG	M8	12	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	91	SG
LDM-8-16-LW25-BK	M8	16	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	92	BK
LDM-8-16-LW25-OR	M8	16	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	92	OR
LDM-8-16-LW25-RD	M8	16	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	92	RD
LDM-8-16-LW25-SG	M8	16	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	92	SG
LDM-8-20-LW25-BK	M8	20	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	93	BK
LDM-8-20-LW25-OR	M8	20	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	93	OR
LDM-8-20-LW25-RD	M8	20	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	93	RD
LDM-8-20-LW25-SG	M8	20	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	93	SG
LDM-8-25-LW25-BK	M8	25	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	95	BK
LDM-8-25-LW25-OR	M8	25	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	95	OR
LDM-8-25-LW25-RD	M8	25	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	95	RD
LDM-8-25-LW25-SG	M8	25	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	95	SG
LDM-8-32-LW25-BK	M8	32	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	96	BK
LDM-8-32-LW25-OR	M8	32	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	96	OR
LDM-8-32-LW25-RD	M8	32	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	96	RD
LDM-8-32-LW25-SG	M8	32	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	96	SG
LDM-8-40-LW25-BK	M8	40	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	99	BK
LDM-8-40-LW25-OR	M8	40	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	99	OR
LDM-8-40-LW25-RD	M8	40	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	99	RD
LDM-8-40-LW25-SG	M8	40	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	99	SG
LDM-8-50-LW25-BK	M8	50	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	102	BK
LDM-8-50-LW25-OR	M8	50	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	102	OR
LDM-8-50-LW25-RD	M8	50	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	102	RD
LDM-8-50-LW25-SG	M8	50	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	102	SG
LDM-8-63-LW25-BK	M8	63	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	106	BK
LDM-8-63-LW25-OR	M8	63	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	106	OR
LDM-8-63-LW25-RD	M8	63	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	106	RD
LDM-8-63-LW25-SG	M8	63	63	45	49	31	6.5	17.5	13.5	25	3	6	24	180	10	106	SG
LDM-10-16-LW30-BK	M10	16	78	54	58	36	8	21	16	30	3	7	26	290	16	150	BK
LDM-10-16-LW30-OR	M10	16	78	54	58	36	8	21	16	30	3	7	26	290	16	150	OR
LDM-10-16-LW30-RD	M10	16	78	54	58	36	8	21	16	30	3	7	26	290	16	150	RD
LDM-10-16-LW30-SG	M10	16	78	54	58	36	8	21	16	30	3	7	26	290	16	150	SG
LDM-10-20-LW30-BK	M10	20	78	54	58	36	8	21	16	30	3	7	26	290	16	151	BK
LDM-10-20-LW30-OR	M10	20	78	54	58	36	8	21	16	30	3	7	26	290	16	151	OR
LDM-10-20-LW30-RD	M10	20	78	54	58	36	8	21	16	30	3	7	26	290	16	151	RD
LDM-10-20-LW30-SG	M10	20	78	54	58	36	8	21	16	30	3	7	26	290	16	151	SG
LDM-10-25-LW30-BK	M10	25	78	54	58	36	8	21	16	30	3	7	26	290	16	154	BK
LDM-10-25-LW30-OR	M10	25	78	54	58	36	8	21	16	30	3	7	26	290	16	154	OR
LDM-10-25-LW30-RD	M10	25	78	54	58	36	8	21	16	30	3	7	26	290	16	154	RD
LDM-10-25-LW30-SG	M10	25	78	54	58	36	8	21	16	30	3	7	26	290	16	154	SG
LDM-10-32-LW30-BK	M10	32	78	54	58	36	8	21	16	30	3	7	26	290	16	157	BK
LDM-10-32-LW30-OR	M10	32	78	54	58	36	8	21	16	30	3	7	26	290	16	157	OR
LDM-10-32-LW30-RD	M10	32	78	54	58	36	8	21	16	30	3	7	26	290	16	157	RD
LDM-10-32-LW30-SG	M10	32	78	54	58	36	8	21	16	30	3	7	26	290	16	157	SG
LDM-10-40-LW30-BK	M10	40	78	54	58	36	8	21	16	30	3	7	26	290	16	161	BK
LDM-10-40-LW30-OR	M10	40	78	54	58	36	8	21	16	30	3	7	26	290	16	161	OR
LDM-10-40-LW30-RD	M10	40	78	54	58	36	8	21	16	30	3	7	26	290	16	161	RD
LDM-10-40-LW30-SG	M10	40	78	54	58	36	8	21	16	30	3	7	26	290	16	161	SG
LDM-10-50-LW30-BK	M10	50	78	54	58	36	8	21	16	30	3	7	26	290	16	166	BK
LDM-10-50-LW30-OR	M10	50	78	54	58	36	8	21	16	30	3	7	26	290	16	166	OR
LDM-10-50-LW30-RD	M10	50	78	54	58	36	8	21	16	30	3	7	26	290	16	166	RD
LDM-10-50-LW30-SG	M10	50	78	54	58	36	8	21	16	30	3	7	26	290	16	166	SG
LDM-10-63-LW30-BK	M10	63	78	54	58	36	8	21	16	30	3	7	26	290	16	173	BK
LDM-10-63-LW30-OR	M10	63	78	54	58	36	8	21	16	30	3	7	26	290	16	173	OR
LDM-10-63-LW30-RD	M10	63	78	54	58	36	8	21	16	30	3	7	26	290	16	173	RD
LDM-10-63-LW30-SG	M10	63	78	54	58	36	8	21	16	30	3	7	26	290	16	173	SG
LDM-10-80-LW30-BK	M10	80	78	54	58	36	8	21	16	30	3	7	26	290	16	181	BK
LDM-10-80-LW30-OR	M10	80	78	54	58	36	8	21	16	30	3	7	26	290	16	181	OR
LDM-10-80-LW30-RD	M10	80	78	54	58	36	8	21	16	30	3	7	26	290	16	181	RD
LDM-10-80-LW30-SG	M10	80	78	54	58	36	8	21	16	30	3	7	26	290	16	181	SG
