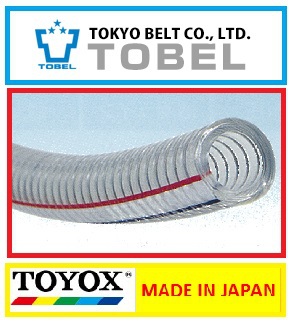

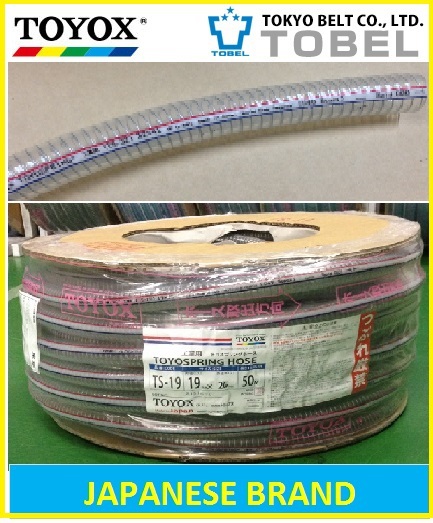

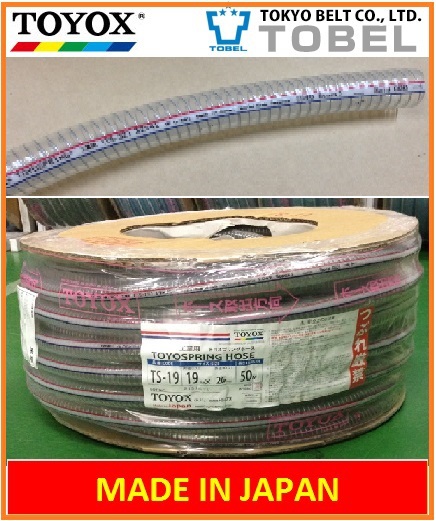

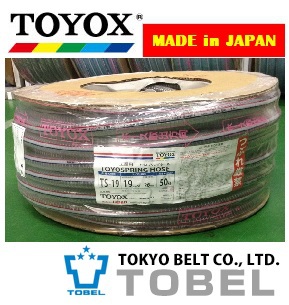

PVC Transparent VACUUM HOSE TOYOSPRING ( TOYOX Tube)
- Product Detail
- Quick Details
- Packaging & Delivery
PVC Transparent VACUUM HOSE TOYOSPRING ( TOYOX Tube)
| FOB Price: | US $2 - 140 / Meter |
|---|---|
| Min.Order Quantity: | 1 roll |
| Supply Ability | 10 rolls |
| Port | Tokyo |
| Payment Terms | T/T |
Quick Details
| Model Number | TOYOSPRING HOSE |
|---|---|
| Brand Name | TOYOX |
| Place of origin | Japan |
| Material | PVC |
| Type | Hose |
| Standard or | None |
Packaging & Delivery
| Packaging Details: | Please ask. |
|---|---|
| Delivery Detail: | 10 working days from payment confirmation |
More Information
PVC Transparent VACUUM HOSE
TOYOSPRING ( TOYOX Tube)
for Factory Equipment
( oil , chemicals , powder , air , hot water )
Applications
•For factory equipment hoses and various equipment.
Fluids
•Oiles, Chemicals, ( including gases, pure water ) , Powder, Air, Water, Hot water
Hose Features
| Resistant to collapsing | Resistance to collapsing and breaking prevents fluids from stopping up, eliminating worries. |
| Oil-resistant for long life | More resistant to oil than the TOYORON, the TOYOSPRING Hose provides long life. |
| Smooth inner surface | Compared with ordinary vacuum hoses, the inner surface of the TOYOSPRING Hose is flat, meaning little residue remains inside, making fluid changes a breeze. |
| Fluid verification | With superior transparency, it is easy to confirm the fluid inside. |
Standards Chart by Size
| Product no. | Inner dia. × Outer dia. | Use pressure | Range of temperature | Standard weight | Standard length | Minimum bend radius | Packaging | Color |
| mm | MPa | °C | kg/Roll | m | mm | |||
| TS-6 | 6×11 | -0.1 to 0.8 | -5 to 60 | 11 | 100 | 25 | Bobbin style | Transparent with attractive lines |
| TS-8 | 8×13.5 | -0.1 to 0.8 | 14 | 100 | 35 | |||
| TS-9 | 9×15 | -0.1 to 0.8 | 17 | 100 | 40 | |||
| TS-12 | 12×18 | -0.1 to 0.5 | 23 | 100 | 50 | |||
| TS-15 | 15×22 | -0.1 to 0.5 | 32 | 100 | 60 | |||
| TS-19 | 19×26 | -0.1 to 0.4 | 21 | 50 | 80 | |||
| TS-25 | 25×33 | -0.1 to 0.4 | 27 | 50 | 100 | |||
| TS-32 | 32×41 | -0.1 to 0.3 | 31 | 40 | 130 | Film packing | ||
| TS-38 | 38×48 | -0.1 to 0.3 | 39 | 40 | 150 | |||
| TS-45 | 45×56 | -0.1 to 0.3 | 55 | 40 | 189 | |||
| TS-50 | 50×62 | -0.1 to 0.3 | 60 | 40 | 200 | |||
| TS-63 | 63×80 | -0.1 to 0.2 | 54 | 20 | 265 | |||
| TS-75 | 75×92 | -0.1 to 0.2 | 62 | 20 | 310 | |||
| TS-90 | 90×108 | -0.1 to 0.2 | 44 | 10 | 370 | |||
| TS-100 | 100×118 | -0.1 to 0.2 | 48 | 10 | 410 |
Note: -0.1 MPa is an approximate value. Please read the precautions as these hoses are not appropriate for all uses and conditions.
Packing
Bobbin style : TS-6 ~ TS-25
Film style : TS-32 ~ TS-100
Compared with ordinary vacuum hoses, the inner surface of the TOYOSPRING Hose is flat, meaning little residue remains inside, making fluid changes a breeze.
