Silicone vacuum hose TOYOSILICONE-S FDA approved tube with wire

  • Product Detail
  • Quick Details
  • Packaging & Delivery

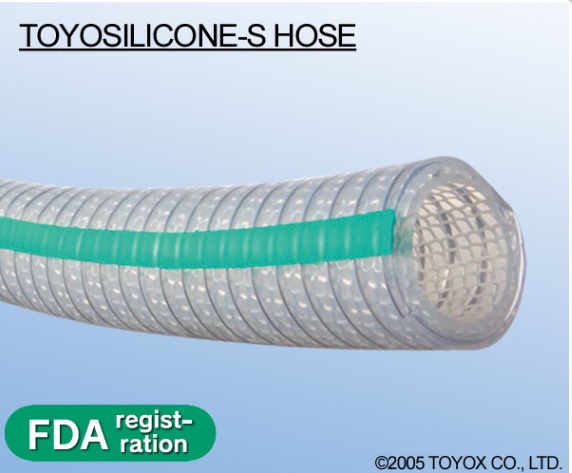

Silicone vacuum hose TOYOSILICONE-S FDA approved tube with wire

FOB Price: US $150 - 480 / Meter
Min.Order Quantity: 1 roll
Supply Ability 10 rolls
Port Tokyo
Payment Terms T/T

Quick Details

Model Number TOYOSILICONE-S TSIS-type
Brand Name TOYOX
Place of origin Japan
Material SILICONE
Type Hose
Standard or FDA

Packaging & Delivery

Packaging Details: Please ask.
Delivery Detail: 10 working days from payment confirmation

More Information

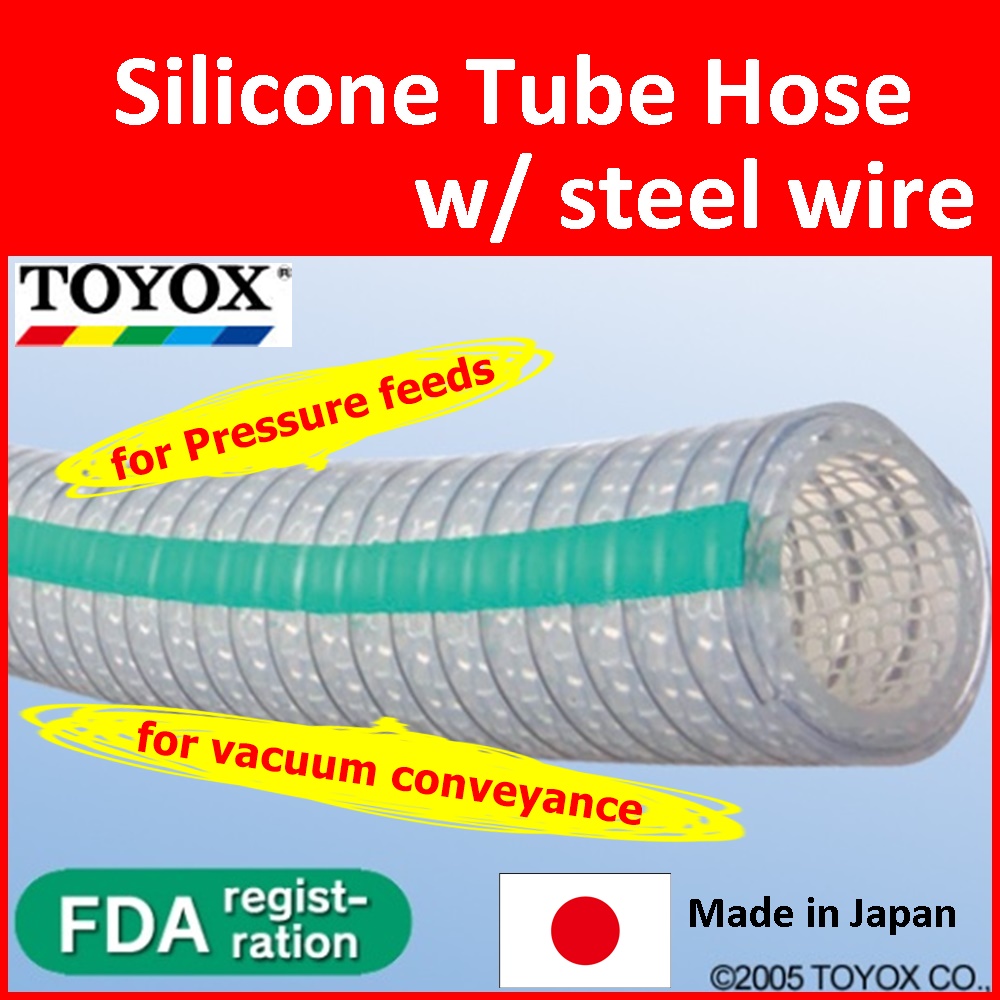

Introduction of silicone vacuum hose ( silicon hose )



[Strong against being crushed]

      Available for pressure feed and vacuum at high heat (150°C)

[FDA-Compliant Product]

     Safe for food applications.

[Excellent heat and cold resistance]

     Applicable in a wide temperature range, (-)30-150°C.
[Pressure resistance]
     Improved its reliability with its exclusive specialized braided reinforcement structure.

     No more hose rupture near the fitting due to thread cast-off.
[Transparent]
     Safe because the hose is transparent, so fluids can be checked.

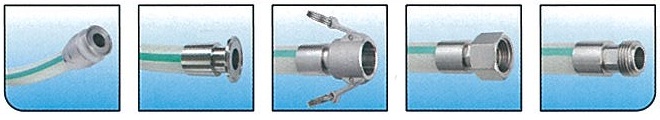

Swaging the coupling



We can supply TOYOSILICONE-S hose with swaged with the following couplings.


















TOYOCAP



For prevention of contamination, we put TOYOCAP into ends of hoses.

.jpg

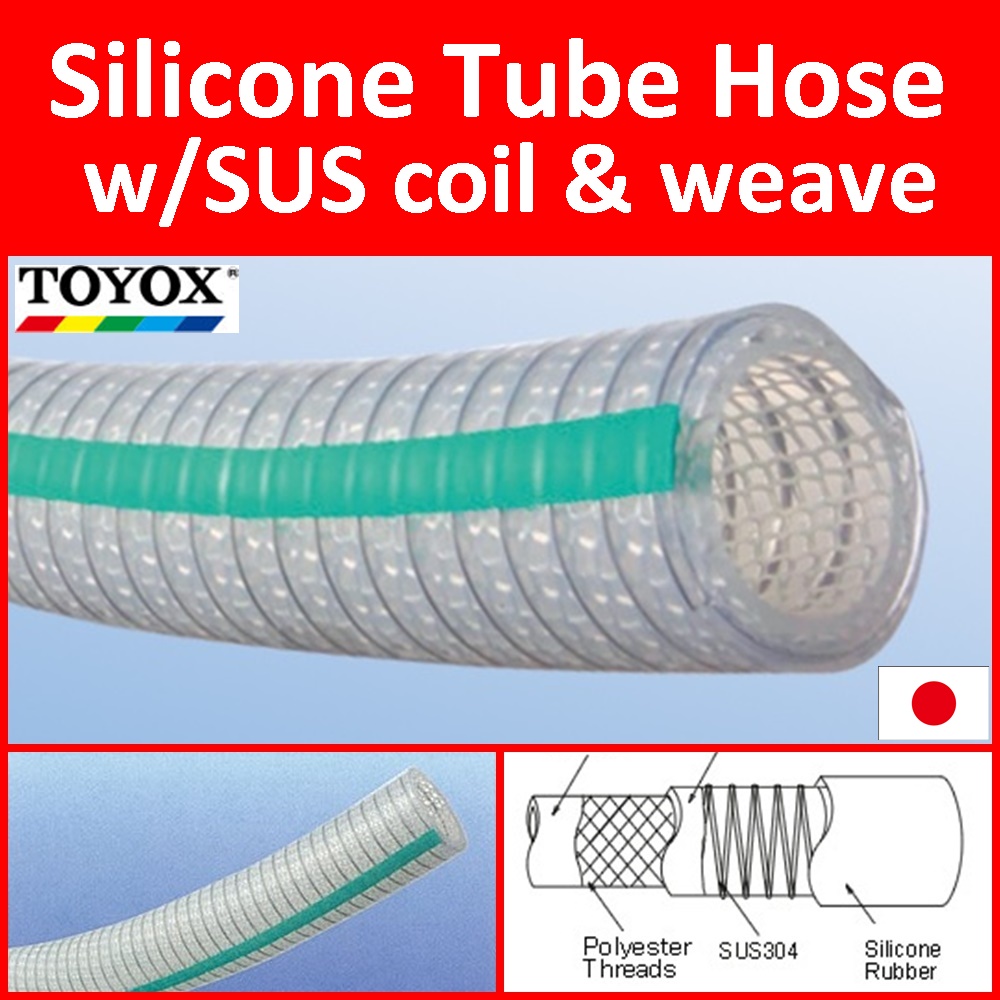

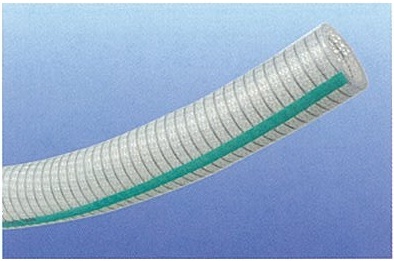

Made of silicone rubber and able to handle pressure and vacuum feeds, pressure and heat, the TOYOSILICONE Hose has the excellent features of silicone such as heat resistance up to 150°C, and low leaching, insulation, and no odor. It can be used in equipment for the food industry, pharmaceutical industry, semiconductor industry, industrial furnace industry and more. Resistant against breaking and collapsing because of its SUS 316 stainless steel reinforcing coil, the TOYOSILICONE Hose is compatible with a wide range of genuine Toyox couplings and delivers high production efficiency.
