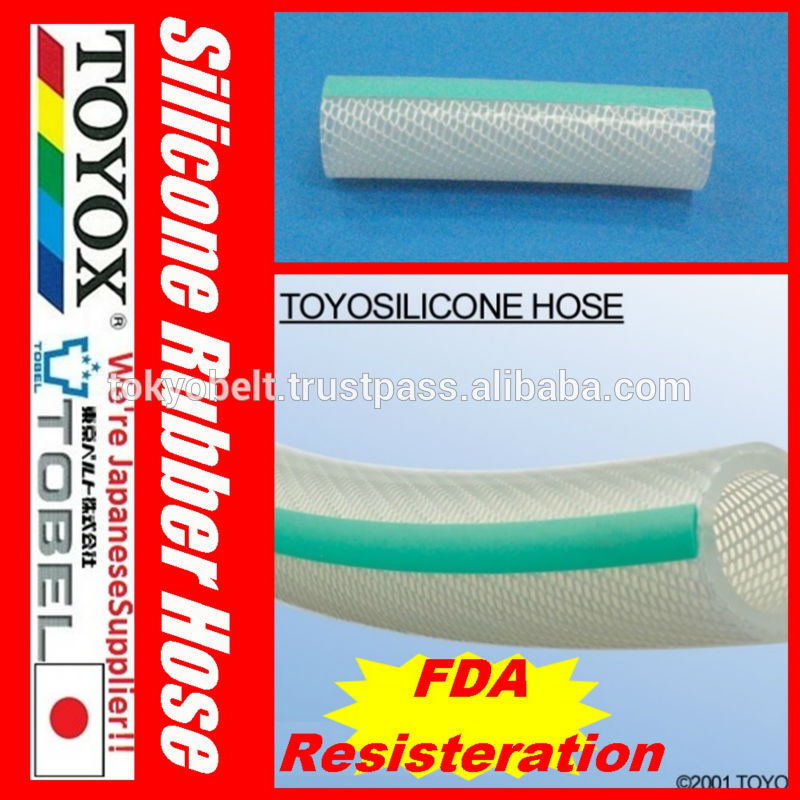

SILICONE HOSE : TOYOSILICONE ( TOYOX ) FDA approved : Heat resistant silicone-rubber tube for food machines made in Japan

FOB Price: USD 4~330/meter
Min.Order Quantity: 10 meters
Supply Ability 10 rolls/month
Port Tokyo
Payment Terms T/T

Quick Details

Model Number TOYOSILICONE TSI-type
Brand Name TOYOX
Place of origin Japan
Material Silicone rubber
Type Heat resistant Silicone Hose
Standard or FDA
Size I.D. 5 mm~50mm
Working temterature Max. 150 degreeC

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: 1~2 weeks

More Information

SILICONE HOSE :

TOYOSILICONE

silicone-rubber tube for filling machines

made in Japan





Introduction

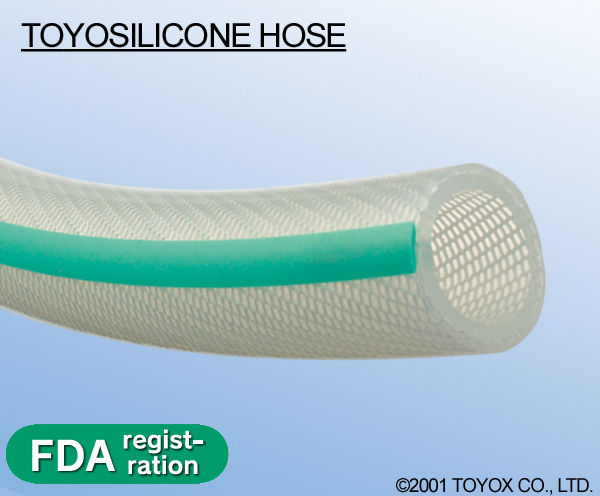

Made of silicone rubber and able to handle pressure feeds, pressure and heat, the TOYOSILICONE Hose has the excellent features of silicone such as heat resistance up to 150°C, and low leaching, insulation, and no odor. It can be used in equipment for the food and beverage industry, semiconductor industry, industrial furnace industry and more. Also, the full lineup of genuine Toyox couplings provides excellent production efficiency.

Caution :

Under no circumstances should these hoses be used for nonpolar organic solvents (such as benzene, toluene and hexane), halogenated hydrocarbons (such as methylene chloride or trichloroethane), concentrated strong acids, strong bases, mineral oil or steam. Also, do not use for animal or vegetable oil at temperatures exceeding 70°C. For steam cleaning, apply for a short time with a saturated steam pressure of less than 0.2 MPa at 130°C.

table of toyosilicone.jpg

Standards Chart by Size

Product no. Inner dia. × Outer dia. Use pressure Range of temperature Standard weight Standard length Minimum bend radius Reinforced construction Packaging Color
mm MPa kg/Roll m mm
TSI-5 4.8×10.6 0~1.0 -30~150 1.8 20 70 Special weave Box With milky green lines
TSI-540 3.6 40
TSI-6 6.3×12.3 0~1.0 2.3 20 80
TSI-640 4.6 40
TSI-8 7.9×14.3 0~1.0 2.9 20 90
TSI-840 5.8 40
TSI-9 9.5×16.0 0~1.0 3.2 20 100 Special weave
TSI-940 6.4 40
TSI-12 12.7×19.5 0~0.5 2.1 10 130
TSI-1220 4.2 20
TSI-15 15.9×24.0 0~0.5 3.1 10 150
TSI-1520 6.2 20
TSI-19 19.0×28.0 0~0.5 4.1 10 180
TSI-1920 8.2 20
TSI-25 25.4×35.5 0~0.5 5.9 10 220
TSI-2520 11.8 20
TSI-32 32.0×43.5 0~0.5 8.5 10 250
TSI-3220 17.0 20
TSI-38 38.1×50.5 0~0.5 10.5 10 310
TSI-3820 21.0 20
TSI-50 50.8×64.5 0~0.3 7.9 5 550
TSI-5010 15.8 10

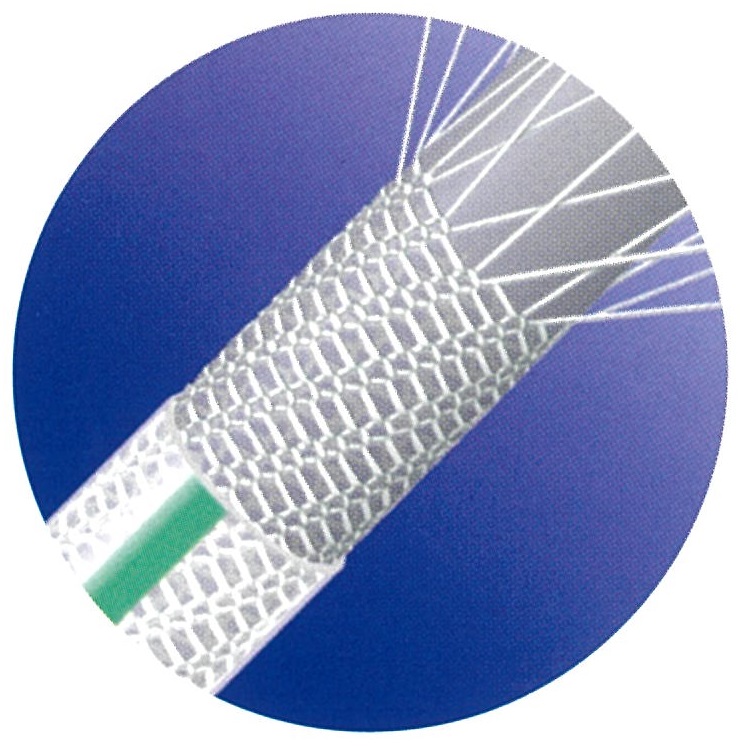

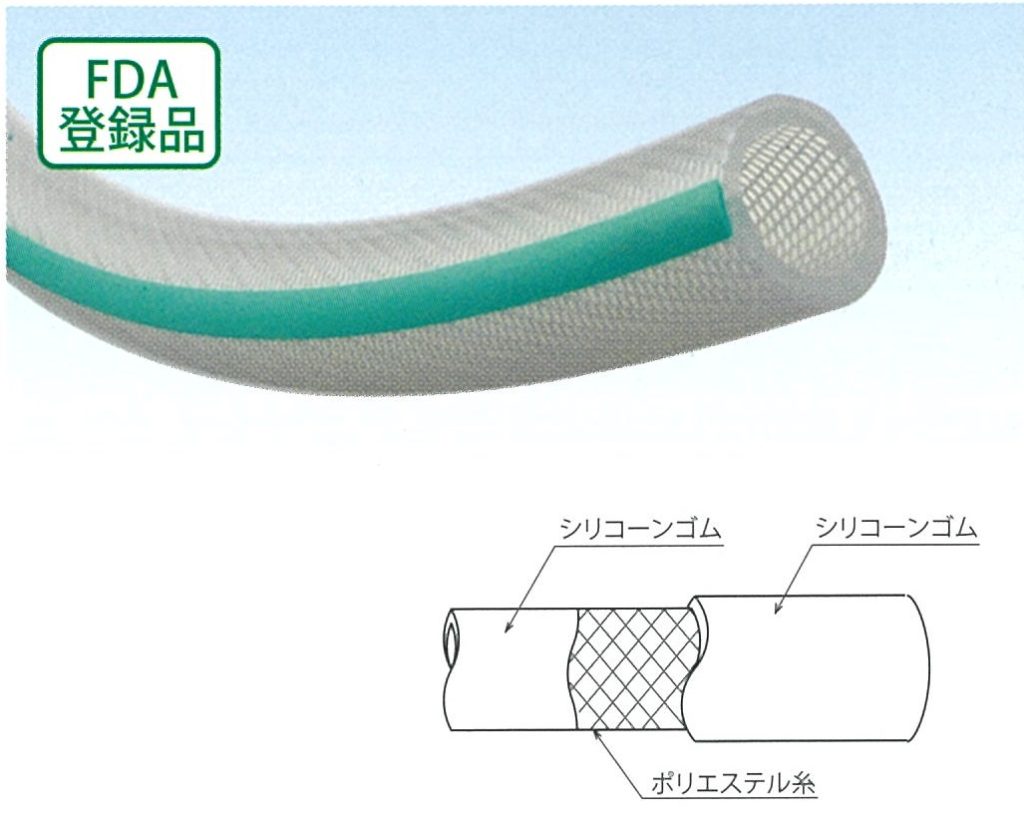

image of structure of Toyocilicone 1.jpg

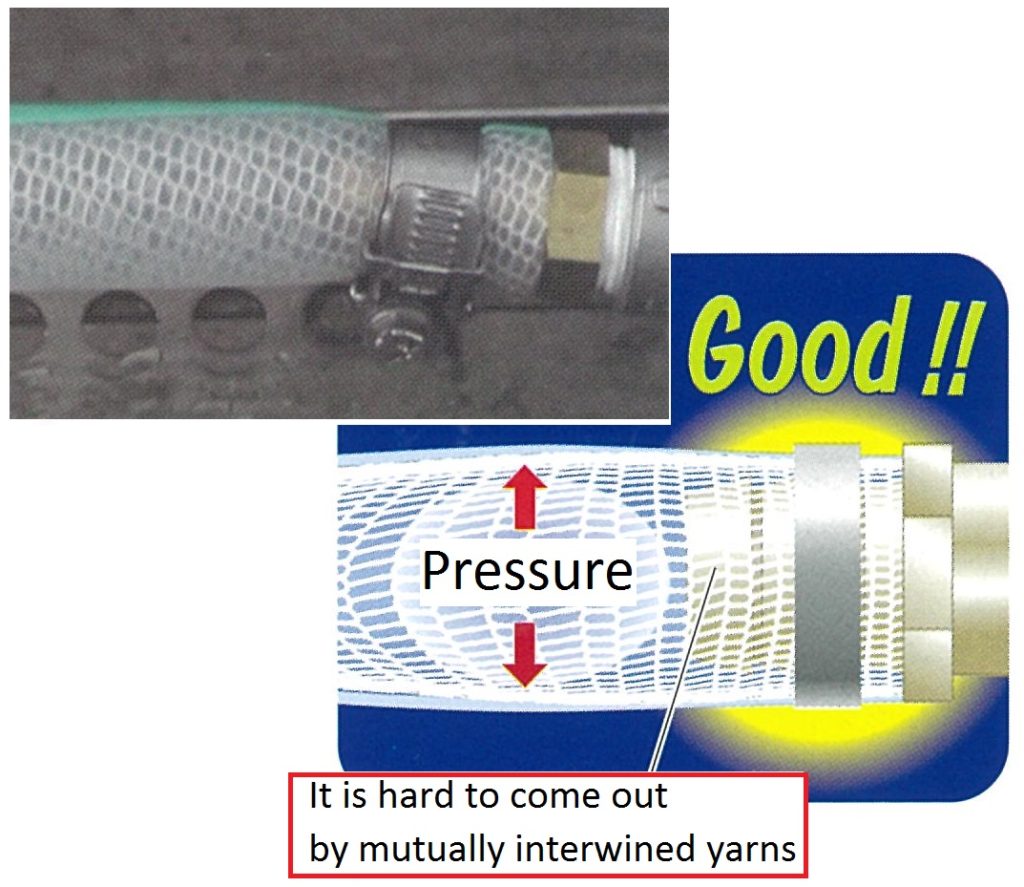

Example of TOYOSILICONE use :

In a plant producing yeast and other cultures, the cleaning method included an instantaneous rise in temperature and pressure. They used a typical silicone braided hose, but the thread would come out near the coupling, causing the hose to burst.




Then,  they switched to the TOYOSILICONE Hose and coupling set with the patented No Torsion System (NTS) to resist bursting. Problem solved!



types of enemas
toyosilicone
silicone hose
blood cell counter

SILICONE HOSE :

TOYOSILICONE

silicone-rubber tube for filling machines

made in Japan
