PRODUCTS

TOYOFOODS-S Hose(Food Grade PVC Hose)

  • Product Detail
  • Quick Details
  • Packaging & Delivery

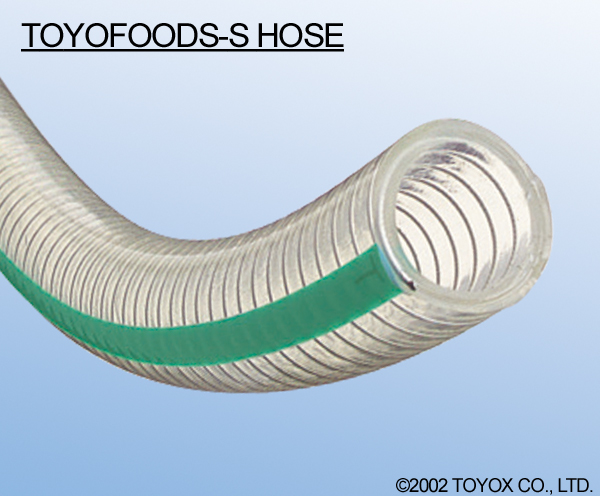

TOYOFOODS-S Hose(Food Grade PVC Hose)

FOB Price:
Min.Order Quantity:
Supply Ability
Port
Payment Terms T/T

Quick Details

Model Number TOYOFOODS-S HOSE(Food Grade PVC Hose)
Brand Name TOYOX
Place of origin Japan
Material Soft PVC
Type TFS-25,32,38,50,63,75,100
Standard or None

Packaging & Delivery

Packaging Details:
Delivery Detail:

More Information

Hose Features

[Compliant with laws and regulations] Complies with the Food Sanitation Act (Ministry of Health, Labour and Welfare Public Notice Nos. 201 of 2006, 267 of 2002 and 52 of 1951). Resistant to oils and fats, it provides long service life.
[Oil-resistant for long life] With strong resistance to oil, the TOYOFOODS Hose can be used worry-free for oily foods and industrial mechanical oil.
[Compatible with vacuums] Can be used for suction or pressure feed situations. The TOYOFOODS-S Hose has strong form retention to resist breaking and collapsing.
[Fluid verification] More transparent than rubber hoses for easy verification of the fluid in the hose.
Note: This hose does not use phthalate plasticizers.
Made of soft PVC, the TOYOFOODS-S Hose was developed to withstand pressure exclusively for pressure feeding foods with a vacuum. The TOYOFOODS-S Hose was made to provide the same features as the TOYOSPRING, with the addition of Food Sanitation Act compliance and safety.

The Benefits of Toyox – a video series



Standards Chart by Size

Product no. Inner dia. × Outer dia. Use pressure MPa Range of temperature Standard weight Standard length Minimum bend radius Packaging Color
mm 50°C 70°C °C Kg/Roll m mm
TFS-25 25×33 -0.1  to 0.4 -0.1  to 0.3 -5  to  70 30 50 100 Bobbin style Neutral transparent with green lines
TFS-32 32×41 -0.1  to 0.3 -0.1  to 0.2 34 40 130 Film packing
TFS-38 38×48 -0.1  to 0.3 -0.1  to 0.2 43 40 150
TFS-50 50×62 -0.1  to 0.3 -0.1  to 0.2 66 40 200
TFS-63 63×80 -0.1  to 0.2 -0.1  to 0.1 56 20 250
TFS-75 75×92 -0.1  to 0.2 -0.1  to 0.1 60 20 310
TFS-100 100×118 -0.1  to 0.2 -0.1  to 0.1 44 10 410



Applications For delivering foods, beverages, water and more
Fluids Oils Chemicals (including gases, pure water) Foods (including fats) Powder Air Water, Hot water
Material Soft PVC Reinforcement material Hard steel wire
Features
  • Meets Food Sanitation Act: ◎
  • Insulating: ○
  • Shape-retaining: ◎
  • Low elution: ○
  • Chemical-resistance: ○
  • Oil-resistance: ○
  • Transparence: ◎
  • Flexibility: ○
  • Heat-resistance: ○
  • Vacuum feed: ◎
  • Pressure feed: ◎

Temperature range -5°C-70°C
