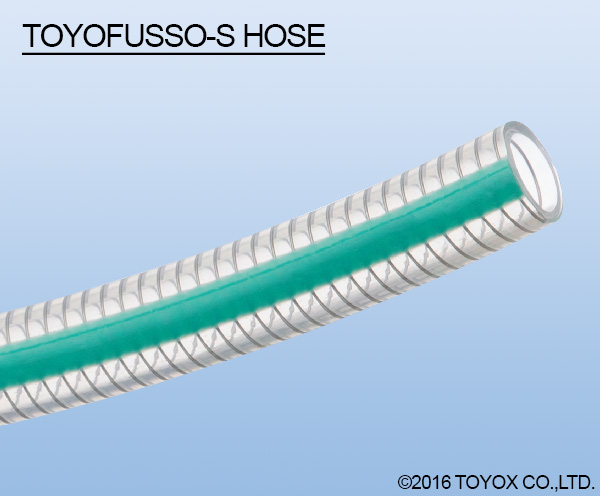

TOYO FUSSO-S Hose SizeΦ32、Φ38 TOYOX
- Product Detail
- Quick Details
- Packaging & Delivery
TOYO FUSSO-S Hose SizeΦ32、Φ38 TOYOX
| FOB Price: | |
|---|---|
| Min.Order Quantity: | |
| Supply Ability | 10~20rolls/month |
| Port | Tokyo Port/Air port |
| Payment Terms | T/T^Western Union |
Quick Details
| Model Number | FFS-32-20 FFS-38-20 |
|---|---|
| Brand Name | TOYOX |
| Place of origin | Japan |
| Material | ETFE,Poly urethane,SUS316 |
| Type | |
| Standard or |
Packaging & Delivery
| Packaging Details: | |
|---|---|
| Delivery Detail: | 1 week |
More Information
Applications:For delivering foods, beverages, water and more.
Fluids:Oils Chemicals (including gases, pure water) Foods (including fats) Solvents & Paints Powder Air Water, Hot water.
Features:
- Meets Food Sanitation Act: ◎
- Insulating: ◎
- Shape-retaining: ◎
- Non-adhering: ◎
- Low elution: ◎
- Low odor: ◎
- Chemical-resistance: ◎
- Oil-resistance: ◎
- Transparence: ◎
- Heat-resistance: ○
- Vacuum feed: ◎
- Pressure feed: ◎
Temperature range:-20°C-80°C
Standards Chart by size:
| Product No. | Inner diaXOurter dia | Use pressureMpa(20℃） | Use pressureMpa(80℃） | Standard Weight (kg/roll) | Standard length(m) | Minimum bend radius(mm) |
| FFS-15-20 | 15X22 | -0.1~0.5 | -0.1~0.25 | 5.5 | 20 | 55 |
| FFS-19-20 | 19X26 | -0.1~0.4 | -0.1~0.2 | 7.0 | 20 | 65 |
| FFS-25-20 | 25X33 | -0.1~0.4 | -0.1~0.2 | 10.8 | 20 | 90 |
| FFS-32-20 | 32X41 | -0.1~0.3 | -0.1~0.15 | 13.6 | 20 | 120 |
| FFS-38-20 | 38X48 | -0.1~0.3 | -0.1~0.15 | 18.4 | 20 | 140 |
