Pencil type belt tension gauge ( v-belt tensioner )

  • Product Detail
  • Quick Details
  • Packaging & Delivery

Pencil type belt tension gauge ( v-belt tensioner )

FOB Price: US$70 - 80 /pcs
Min.Order Quantity: 1 pcs
Supply Ability 10 pcs
Port TOKYO
Payment Terms T/T

Quick Details

Model Number Pencil type belt tension gauge
Brand Name Mitsuboshi belting
Place of origin Japan
Material None
Type Pencil type
Standard or non-standard

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: Please ask.

More Information

Pencil type belt tension gauge ( v-belt tensioner )





Introduction



  To show a best performance of transmission belts, one of the most important thing is

proper tension strength.

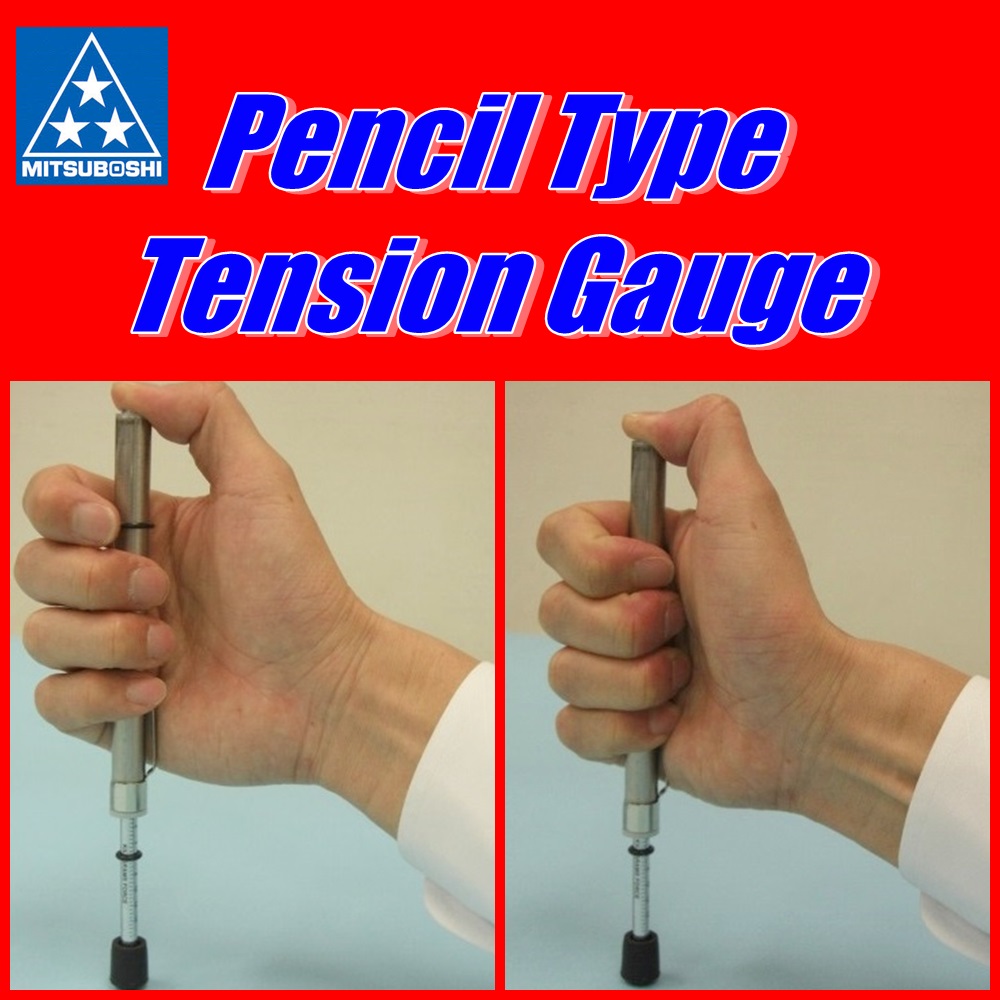

 " Pencil type belt tension gauge " is light weight & handy. (Φ11.4×195mm)

You can measure easier than now!



How to use



1) Measure the "span length" (It is indicated in Figure 2)

• The "span length" is a part of the belt length which don't contact with pulleys.

   (If diameters of both pulleys are same, "span length" is equal to wheel-base.)



2) Caluculate the "bended depth" (It is indicated in Figure 1 & Figure 2)2.jpg



3) Set the big O-ring (Please look at Figure 3 & Figure 4)

 • Set the big O-ring at scale of  bended depth.

(example:   "span length" = 500mm → set the big O-ring at scale of 8mm)



4) Set the small O-ring (Please look at Figure 3 & Figure 4)

• Set the small O-ring at scale of zero.

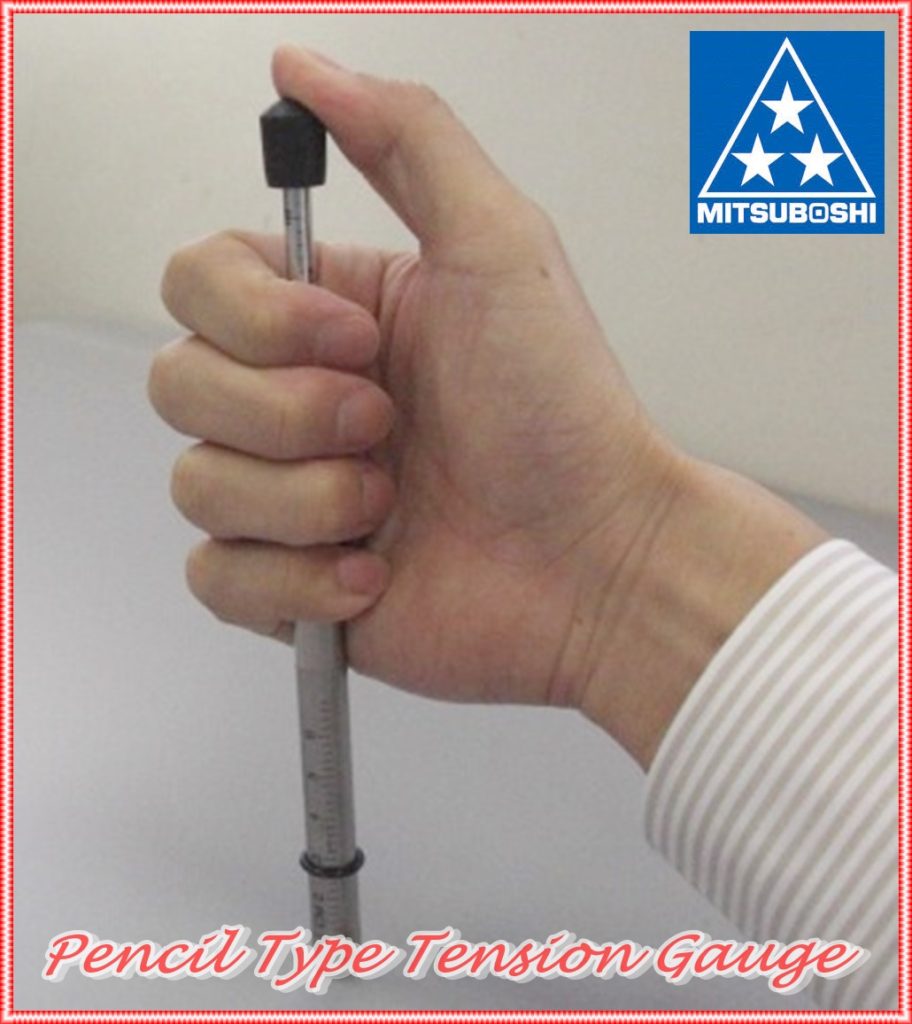

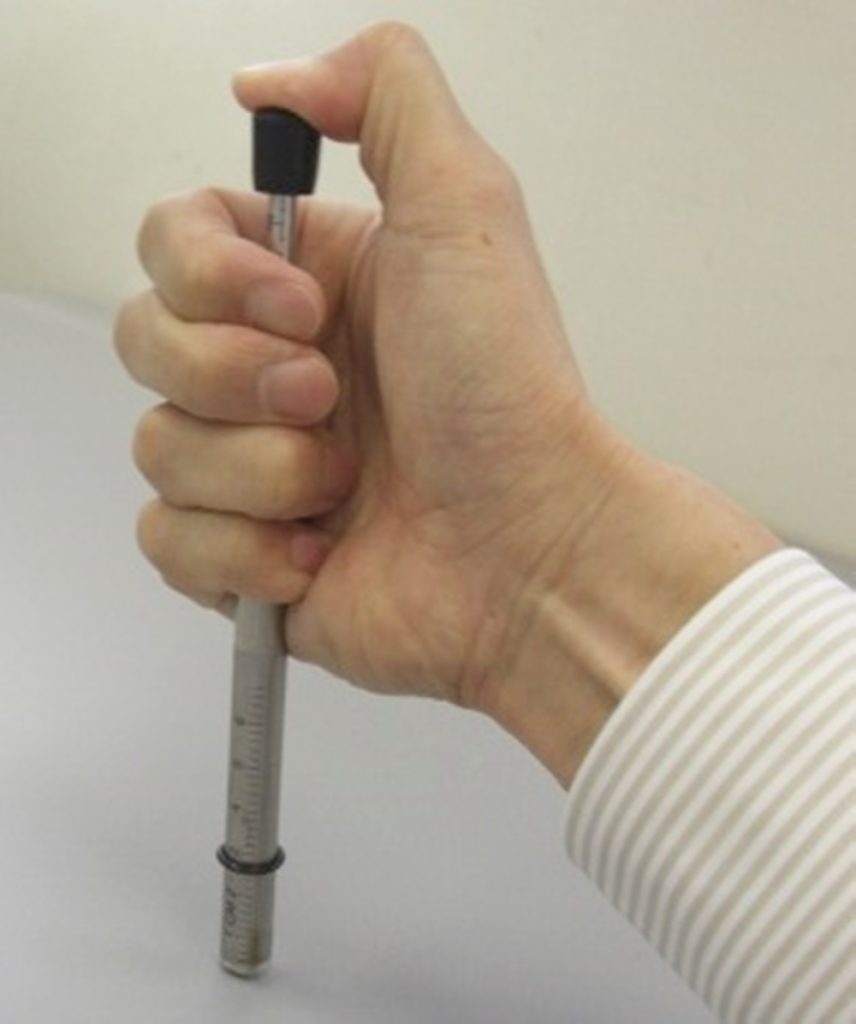

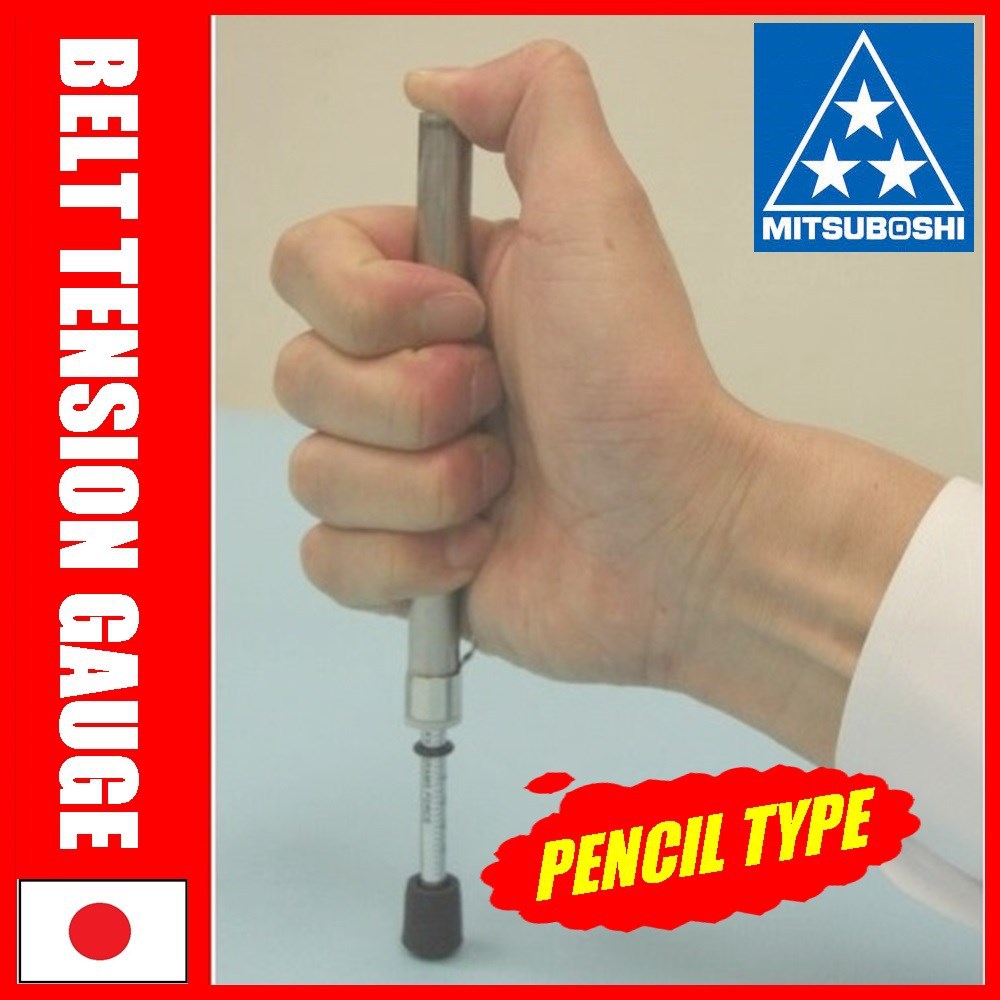

5) Push the gauge & measure a tension (Please look at Figure 1 & Figure 5)

• At the middle point of "span length" , push the gauge.

• Please push till the big O-ring come to a same level as the outer circumference of the belt.

(It means a position of the belt existed before pushing)



6) Read the tension (Please look at Figure 3 & Figure 4)

• A scale of the small O-ring is the tension.

• Multiplied case, please average all tensions.



7) Adjust the tension

• Adjust the tension between min. and max. indicated in Table 1









[Figure 1]

.jpg



[Figure 2]

.jpg



 [Figure 3]

.jpg



[Figure 4]

.jpg



 [Figure 5]




 [Table 1]
