High Pressure PVC coil wound hose TOYORING For factory equipment tube oil resistance made in Japan

FOB Price: US $4 - 31/ Meter
Min.Order Quantity: 1 roll
Supply Ability 10 rolls
Port Tokyo
Payment Terms T/T

Quick Details

Model Number TOYORING TG-type
Brand Name TOYOX
Place of origin Japan
Material PVC
Type Hose
Standard or None

Packaging & Delivery

Packaging Details: Please ask.
Delivery Detail: 10 working days from payment confirmation

More Information

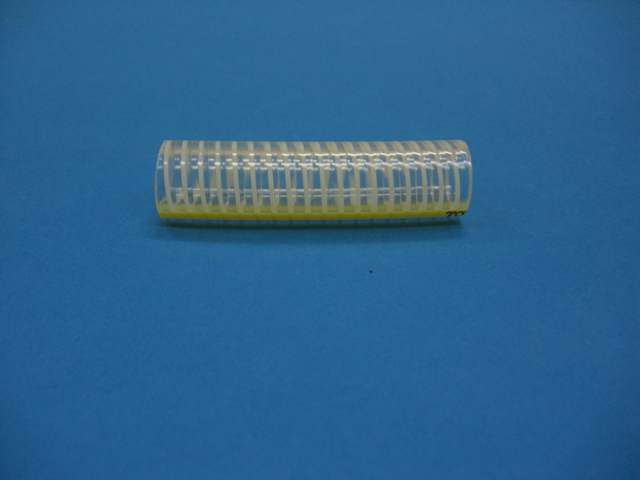

High Pressure PVC coil wound hose

TOYORING

For factory equipment tube

oil resistance

made in Japan



Introduction ( pvc plastic pipe scrap )

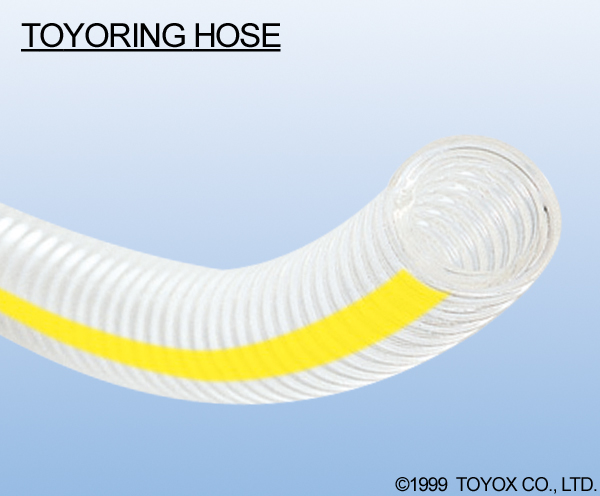

Made of soft PVC, the TOYORING Hose was developed to withstand pressure for pressure feeding and vacuum conveyance. TOYORING Hose is easy to cut with scissors. The special PET plastic provides reinforcement to help the hose retain its shape if it collapses, providing worry-free performance and long life.



Made of soft PVC, the TOYORING Hose was developed to withstand pressure for pressure feeding and vacuum conveyance. In addition to having the features of the TOYORING Hose, it returns to its original shape and is easy to cut.



table of Toyoring 2.jpg



*Please note that -0.1 MPa is an approximate value, because TOYOX's hoses may be not applicable for use depending on certain use or conditions.

*Decompression Deformation Temp. -0.1MPa= -760mmHg



Product no. Inner dia. × Outer dia. Use pressure Range of temperature Depressurization deformation temperature
(-0.1MPa)
Standard weight Standard length Minimum bend radius Packaging Color
mm MPa °C Kg/Roll m mm
TG-9 9×15 -0.1 to 0.8 -5 to 60 100°C 14.0 100 40 Bobbin style Neutral transparent with yellow lines
TG-12 12×18 -0.1 to 0.5 100°C 18.5 100 50
TG-15 15×22 -0.1 to 0.5 120°C 12.5 50 60
TG-19 19×26 -0.1 to 0.4 110°C 17.0 50 80
TG-25 25.4×33.4 -0.1 to 0.4 100°C 25.0 50 100
TG-32 32×41 -0.1 to 0.3 90°C 28.0 40 130 Film packing
TG-38 38×48 -0.1 to 0.3 85°C 38.0 40 150
TG-50 50.8×62.8 -0.1 to 0.3 75°C 60.0 40 200

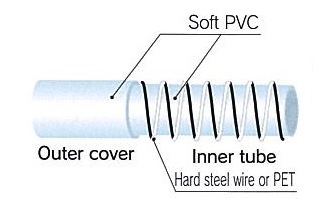

image of spec of Toyoring 1.jpgStructure of Toyoring.jpg





image of spec of Toyoring 2.jpg
