Soft PVC braided hose SUPER TOYORON made in Japan TOYOX brand for chemicals

  • Product Detail
  • Quick Details
  • Packaging & Delivery

Soft PVC braided hose SUPER TOYORON made in Japan TOYOX brand for chemicals

FOB Price: US $2 - 64 / Meter
Min.Order Quantity: 1 roll
Supply Ability 10 rolls
Port Tokyo
Payment Terms T/T

Quick Details

Model Number SUPER TOYORON ST-type
Brand Name TOYOX
Place of origin Japan
Material PVC
Type Hose
Standard or None

Packaging & Delivery

Packaging Details: Please ask.
Delivery Detail: 10 working days from payment confirmation

More Information

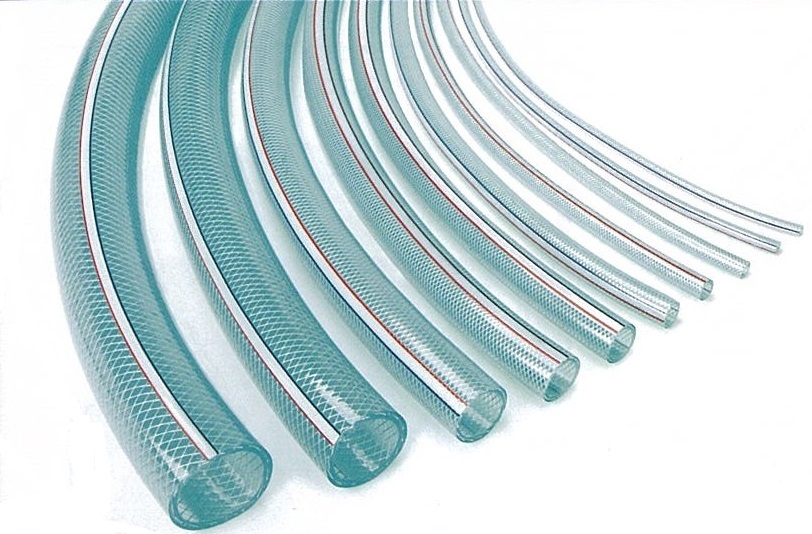

Soft PVC braided hose

SUPER TOYORON

made in Japan

TOYOX brand

for chemicals





Introduction

High oil resistance, long lasting, light weight and easy to handle.

SUPER TOYORON is Lighter than rubber hoses and easy to install and reduces the load on equipment. The hose is easy to cut and couplings can be easily inserted for improved hose installation efficiency, and with superior oil resistance, the flexibility lasts longer for a long service life.

The red, white and blue lines on the hose are the mark of a TOYOX product. These image lines guarantee quality.



[Lightweight and adaptable] Lighter than rubber hoses and easy to install, the SUPER TOYORON Hose reduces the load on equipment.
[Easy coupling insertion] The TOYORON Hose is easy to cut and couplings can be easily inserted for improved hose installation efficiency.
[Oil-resistant for long life] With superior oil resistance, the flexibility lasts longer for a long service life.





A multipurpose pressure feed hose made of soft PVC, the SUPER TOYORON Hose provides superior oil resistance to the TOYORON Hose for a longer life.



 table of super toyoron.jpg



Product no. Inner dia. × Outer dia. Use pressure Range of temperature Standard weight Standard length Minimum bend radius Packaging Color
mm MPa °C kg/Roll m mm
ST-6 6×10.5 0 to 1.0 -5 to 60 8 100 25 Bobbin style Green transparent with attractive lines and blue warp weave
ST-8 8×13 0 to 1.0 11 100 35
ST-9 9×15 0 to 1.0 15 100 45
ST-12 12×18 0 to 0.8 19 100 60

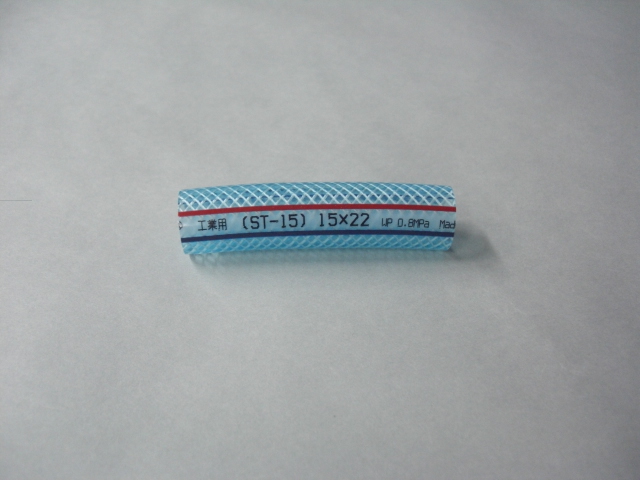

ST-15 15×22 0 to 0.8 27 100 90
ST-19 19×26 0 to 0.6 16 50 130
ST-22 21.5×28.5 0 to 0.6 19 50 125
ST-25 25×33 0 to 0.6 25 50 150
ST-32 32×41 0 to 0.4 28 40 192
ST-38 38×48 0 to 0.4 36 40 228
ST-48 48×58 0 to 0.4 40 40 290 Film packing
ST-50 50×62 0 to 0.3 54 40 300
ST-63 63×80 0 to 0.3 53 20 600
ST-75 75×92 0 to 0.3 62 20 800

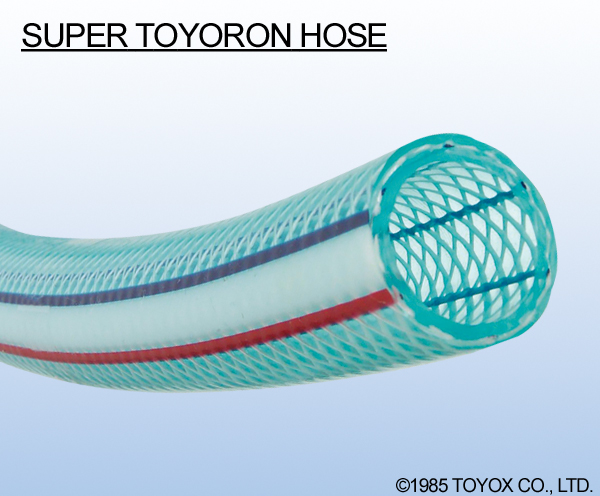

 image of spec of Super Toyoron.jpg                    Structure of Super Toyoron 1.jpg

image of spec of Super Toyoron 2.jpg






High oil resistance, long lasting, light weight and easy to handle.

SUPER TOYORON is Lighter than rubber hoses and easy to install and reduces the load on equipment. The hose is easy to cut and couplings can be easily inserted for improved hose installation efficiency, and with superior oil resistance, the flexibility lasts longer for a long service life.

The red, white and blue lines on the hose are the mark of a TOYOX product. These image lines guarantee quality.
